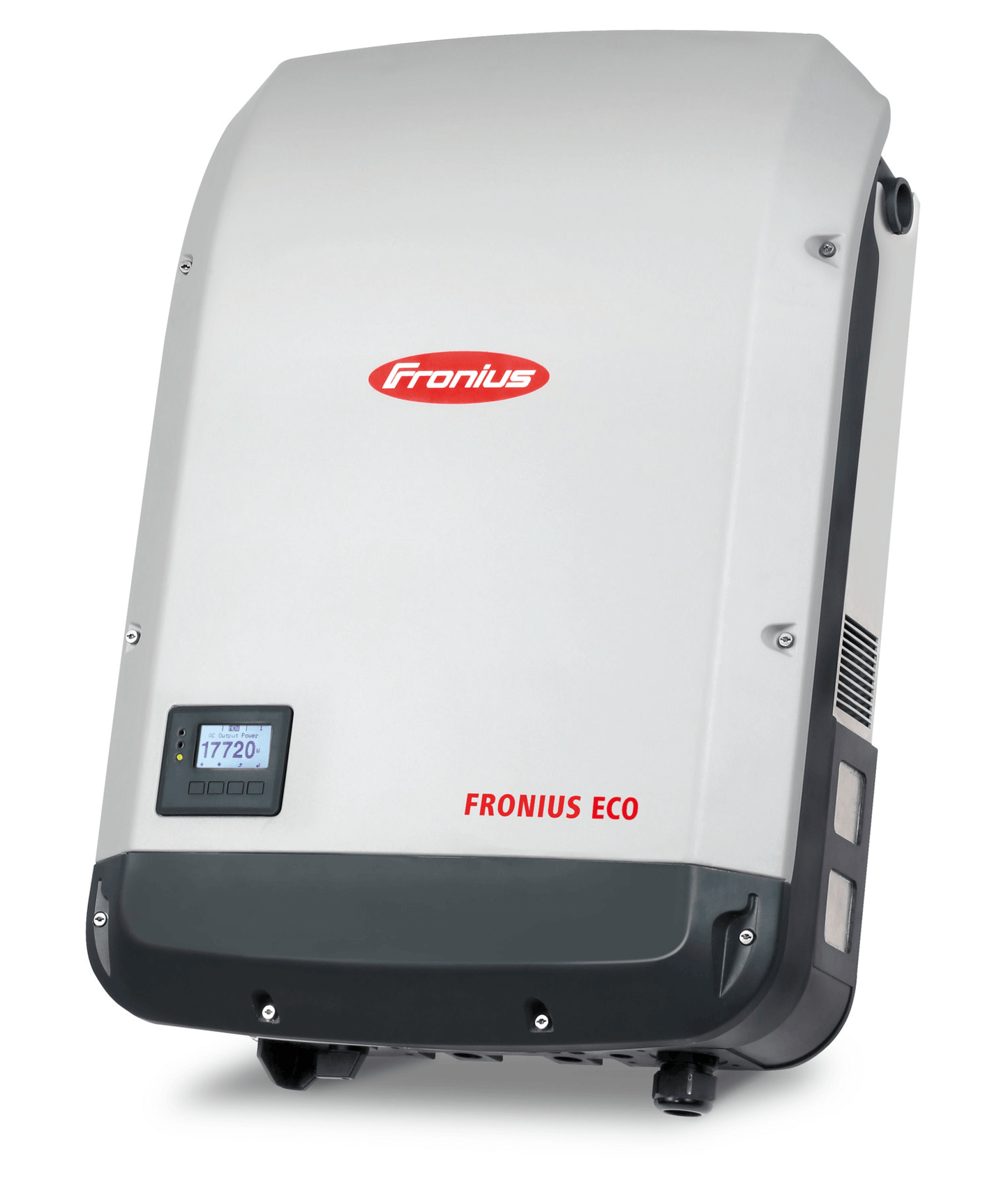

Fronius Eco Inverters
The three-phase Fronius Eco in power categories 25.0 and 27.0 kW perfectly meets all the requirements of large-scale installations. Single MPPT for maximum efficiency.
Select model
| Variant | Price (exc tax) |
|---|---|
|
FR-4.210.056.040
Fronius Eco 25.0kW 3-phase inverter with communications |
Regular price
£2,589.31
Regular price
Unit price
per
|
|
FR-4.210.056.040.001
Fronius Eco Light 25.0kW 3-phase inverter |
Regular price
£2,589.31
Regular price
Unit price
per
|
|
FR-4.210.057.040
Fronius Eco 27.0kW 3-phase inverter with communications |
Regular price
£2,659.43
Regular price
Unit price
per
|
|
4.210.057.040.001
Fronius Eco Light 27.0kW 3-phase inverter |
Regular price
£2,589.31
Regular price
Unit price
per
|
Fronius Eco Inverters
The three-phase Fronius Eco in power categories 25.0 and 27.0 kW perfectly meets all the requirements of large-scale installations. Single MPPT for maximum efficiency.
Thanks to its light weight and SnapINverter mounting system, this transformerless device can be installed quickly and easily either indoors or outdoors.
This inverter series sets new standards with its IP 66 protection class. In addition, its integrated all-pole string fuse holders and optional DC fuse mean that string combiner boxes are no longer required.
Simple data monitoring using an integrated WLAN interface. The inverter connects wirelessly and allows the user to monitor how the solar PV system is performing via the Fronius SolarWeb using an internet-ready device (Not included with Light models).
- One MPPT
- Built-in display
Warranty
- Option 1 - 2-year Fronius Warranty Plus + 3-year Fronius Warranty Plus upon registration
- Option 2 - 2-year Fronius Warranty Plus + 5-year Fronius Warranty upon registration
- Fronius Warranty - The Fronius Warranty offers warranty protection for the material over the entire service life.
- Fronius Warranty Plus - The Fronius Warranty Plus covers the material, servicing, and transport costs.
- Warranty extensions available up to 20 years
Good to know
Technical Specifications
| SKU | FR-4.210.056.040 | FR-4.210.056.040.001 | FR-4.210.057.040 | 4.210.057.040.001 |
|---|---|---|---|---|
| MPN | 4,210,056,040 | - | 4,210,057,040 | - |
| Power Rating | 25000W | - | 27000W | - |
| MPPT Trackers | 1 | - | 1 | - |
| Phases | Three phase | - | Three phase | - |
| Connectivity | Ethernet, WiFi | - | Ethernet, WiFi | - |
| Weight (kg) | 39.5 | - | 38.8 | - |
| Warranty | 7* | - | 7* | - |
| Certification | G99 | - | G99 | - |
| IP Rating | IP66 | - | IP66 | - |
| On Grid / Off Grid | On Grid, Off Grid* | - | On Grid, Off Grid* | - |
| Intrastat Commodity Code | 85044086 | - | 85044086 | - |
