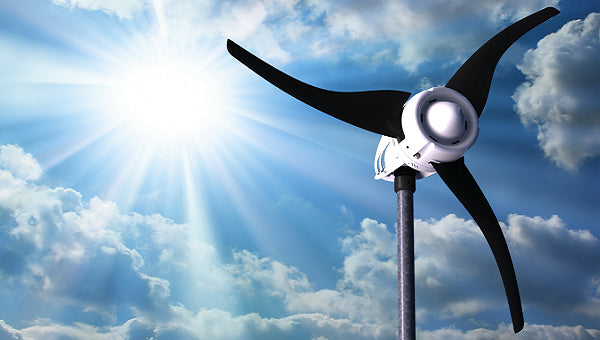

Leading Edge LE-600 Wind Turbine

Leading Edge LE-600 Wind Turbine

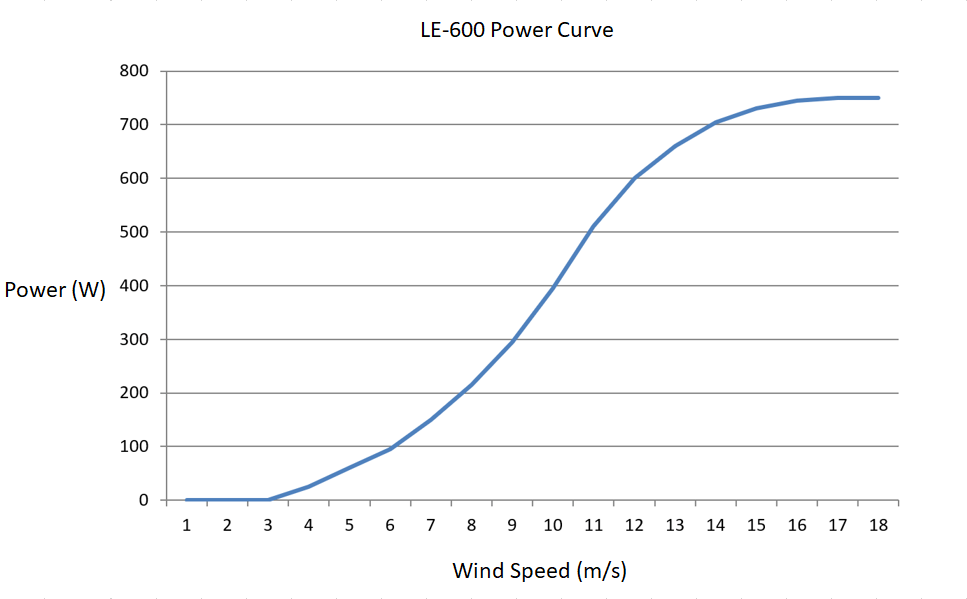

Rating: 160 watts @ 8m/s (17.8mph) wind
Peak output: 750 watts @ 18m/s (40mph)
Voltage: 12, 24 or 48 volts DC.
Rotor Diameter: 1.54m
Cut In Windspeed: 3m/s (6.7mph)

Downwind wind turbine capable of producing output of up to 750W.

The LE-600 wind turbine is often used as a wind power addition to an existing off grid power system to compliment Solar PV in order to provide more power in the winter months and cut down on diesel usage. Other applications include remote industrial systems, water pumping systems and lighting and power in remote farm buildings – any application with a moderate power requirement.

Designed for industrial applications in harsh environments. Unique low inertia axial flux generator which utilises Neodymium rare earth magnetic materials to allow the turbine to spin in the lightest of breezes and to react quickly to gusts.

Manufactured from hard anodized and powder coated high quality aluminium alloys and stainless steel with sealed for life bearings, so no greasing or maintenance is required.

Used with TriStar TS diversion load controllers to control charge to batteries.
