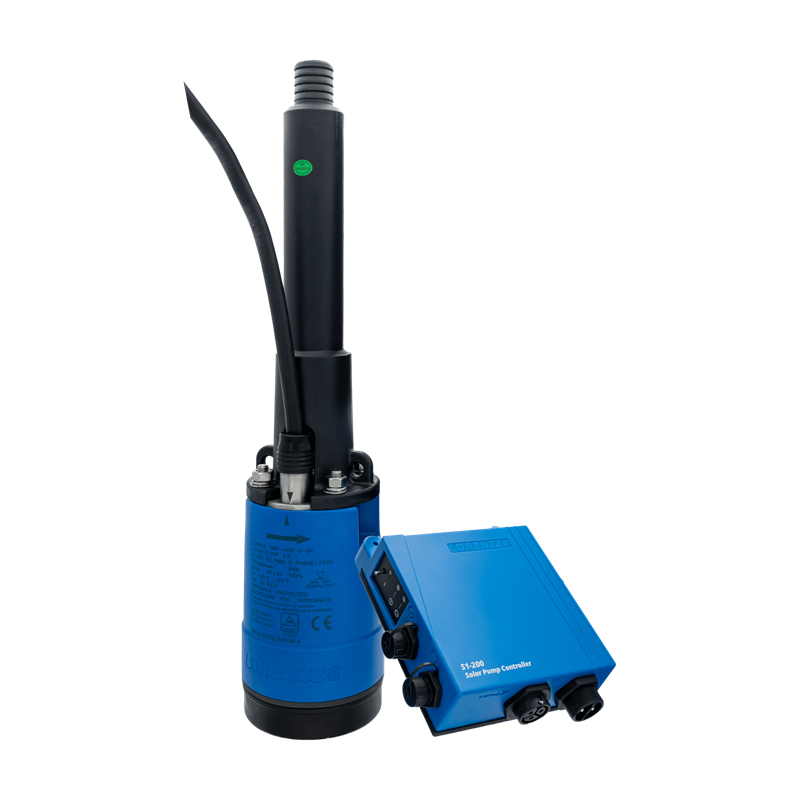

Lorentz S1-200 Self Install Pump System

Lorentz S1-200 Self Install Pump System

This high efficiency, low cost solar pumping system comprising of pump and controller is ideal for applications such as livestock water and irrigation.

Pump system includes:

• Plug and play connection for self install
• Operation with a standard solar panel > 200Wp (max 55VDC)
• Maximum 40 m / 90 ft head and 3 m3/h flow rate
• 1 x pump with motor (with 15m cable)
• 1 x S1-200 controller
• 1 x PV adapter cable MC4
• 1" pipe spigot for outlet hose (Hose clamp included).
• Length: 431.6 mm.
• Width (diameter): 96 mm.
• Weight: 7.2Kg.
• Made in China
• Warranty 1Year

Usability

• System controller with plugged connections, integrated MPPT
• Controller with Bluetooth® connectivity for local configuration and control
• Simple S-Connect app for speed control, timers and extended trouble shooting

The S1-200 pump is available with different pump ends which differ in their capacity, i.e. the amount of flow and head (or pressure) that they handle. The following table shows the maximum flow rate and head values for each pump end:
