Manual Backup Switch for Fronius GEN24
Changeover switch to enable Fronius GEN24 full backup functionality.
Select model
| Variant | Price (exc tax) | ||
|---|---|---|---|
|
FR-BACKUP-SW-1PH
Manual Backup Switch for Fronius GEN24 Single Phase - 100A |
Regular price
£298.80
Regular price
Unit price
per
|
||
|
FR-BACKUP-SW-3PH
Manual Backup Switch for Fronius GEN24 Three Phase - 100A |
Regular price
£484.83
Regular price
Unit price
per
|
||
Manual Backup Switch for Fronius GEN24
Changeover switch to enable Fronius GEN24 full backup functionality.

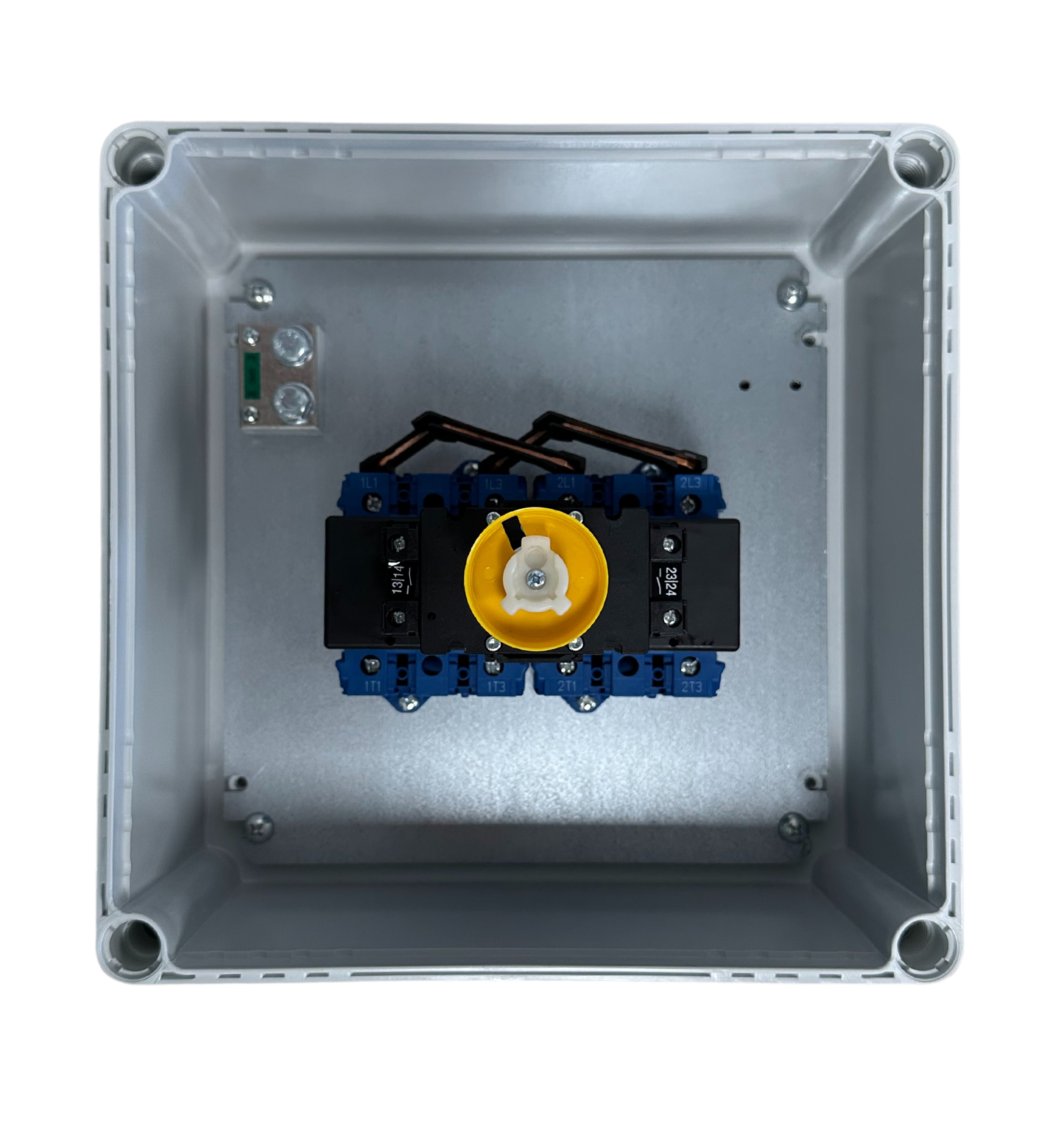

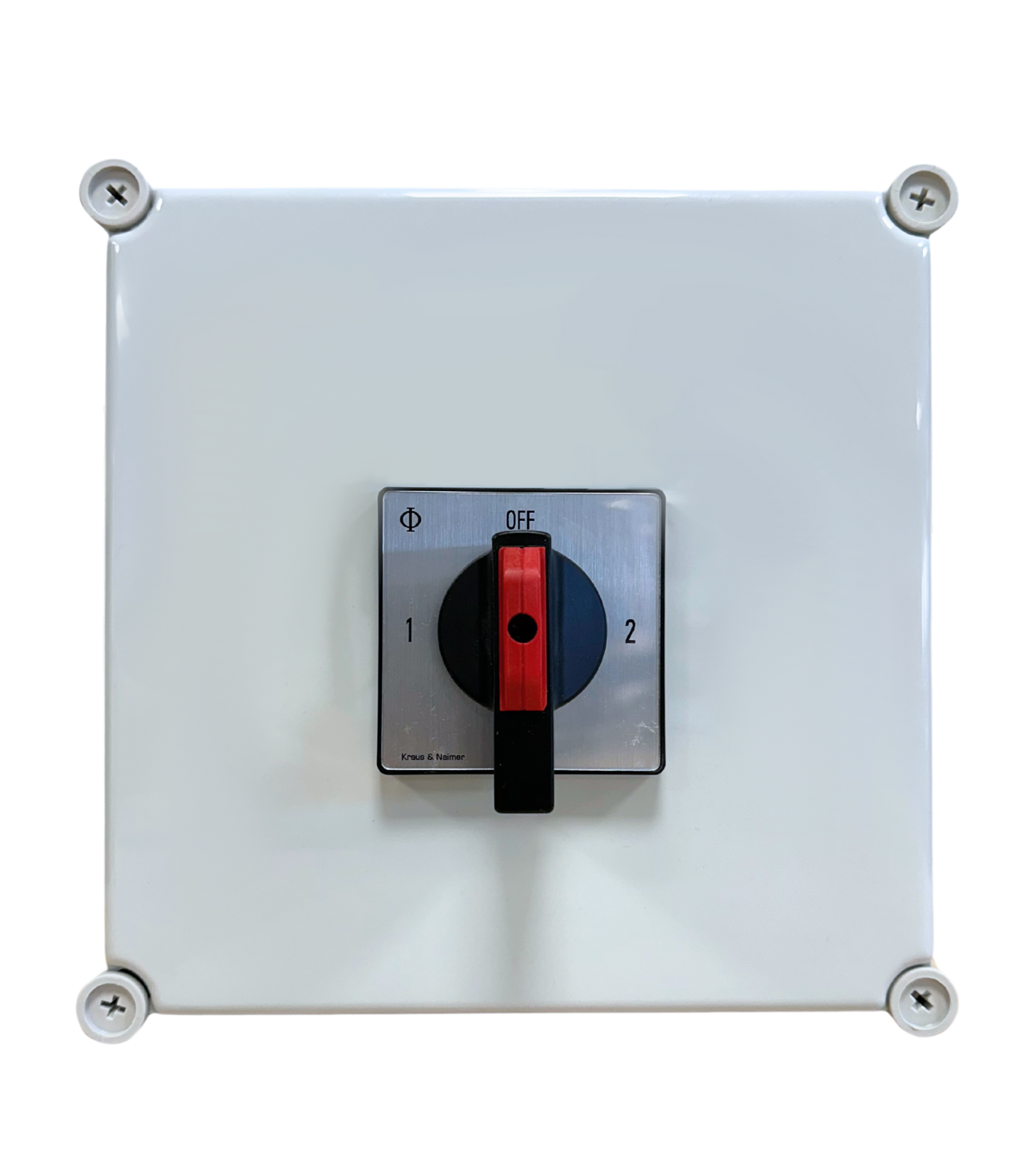

The switch is installed between the main fuse and the distribution board. In position 1 the system behaves as a normal grid tied hybrid inverter system, switching to position 2 isolates the distribution board from the grid and enables backup mode in the inverter, it can then supply up to its rated output to any loads connected to the distribution board. A centre off position ensures full disconnection from the grid prior to initiating backup mode.
Good to know
Technical Specifications
| SKU | FR-BACKUP-SW-1PH | FR-BACKUP-SW-3PH |
|---|---|---|
| Height | 280 | 380 |
| Width | 280 | 280 |
| Depth | 180 | 180 |
| IP Rating | IP66 | IP66 |
| Intrastat Commodity Code | 85365080 | 85365080 |
Downloads /
Documents
Related Products
Fronius Primo GEN24 Plus
The Fronius Primo GEN24 Plus, with power categories of between 3 and 10 kW, is the ideal hybrid inverter for private households. With many features as standard, the single-phase device covers all customer requirements.
*see manufacturer's documentation for further information
