Morningstar EcoPulse™

Regular price From £35.00
Regular price Sale price From £35.00
Sale Sold out
Shipping calculated at checkout.

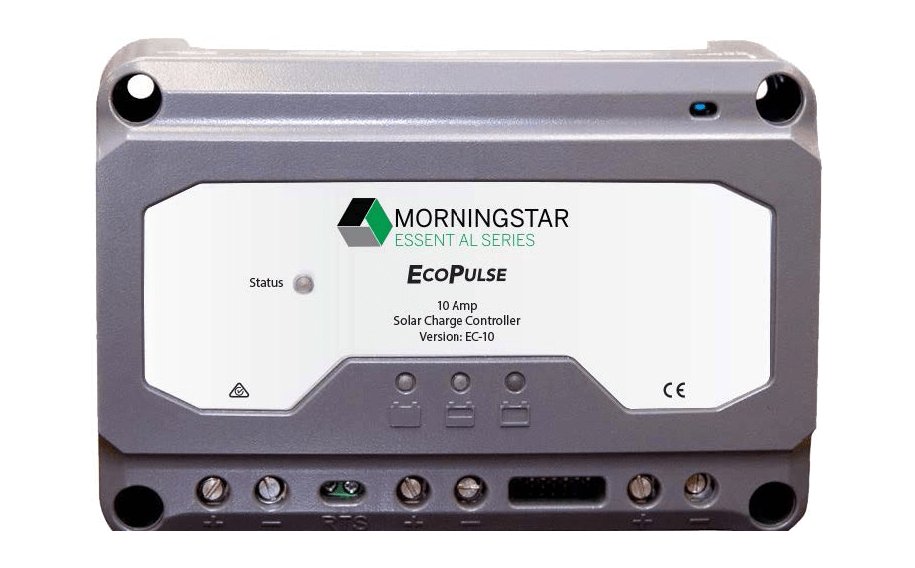

Morningstar's EcoPulse™ is a pulse width modulation (PWM) solar charge controller within the Morningstar Essential Series™ which provides essential off-grid battery regulation functions for solar PV systems.

See full details

Retail customers
Many of the products we supply require training and experience to install, we recommend seeking the assistance of a professional to help you with your project.

Find the right installer for you

Trade customers
Please login or apply for a trade account for trade pricing, check stock and order online.

Log in / Apply for a trade account

Select model

Variant Price (exc tax)
EC-10
Morningstar EcoPulse-10A (12/24V), 10A Load output
Regular price £35.00
Regular price Sale price £35.00
EC-10M
Morningstar EcoPulse-10A (12/24V) 10A load output,with Meter
Regular price £91.13
Regular price Sale price £91.13
EC-20
Morningstar EcoPulse-20A (12/24V) 20A load output
Regular price £70.88
Regular price Sale price £70.88
EC-20M
Morningstar EcoPulse-20A (12/24V)20A load output, with Meter
Regular price £117.16
Regular price Sale price £117.16
EC-30
Morningstar EcoPulse-30A (12/24V), 30A Load output
Regular price £55.00
Regular price Sale price £55.00
EC-30M
Morningstar EcoPulse-30A (12/24V) 30A load output with Meter
Regular price £102.18
Regular price Sale price £102.18
(exc tax)

Morningstar EcoPulse™

Morningstar's EcoPulse™ is a pulse width modulation (PWM) solar charge controller within the Morningstar Essential Series™ which provides essential off-grid battery regulation functions for solar PV systems.

Metered and non-metered versions are available at 10, 20, and 30 amp charge ratings for 12 and 24 volt battery systems.

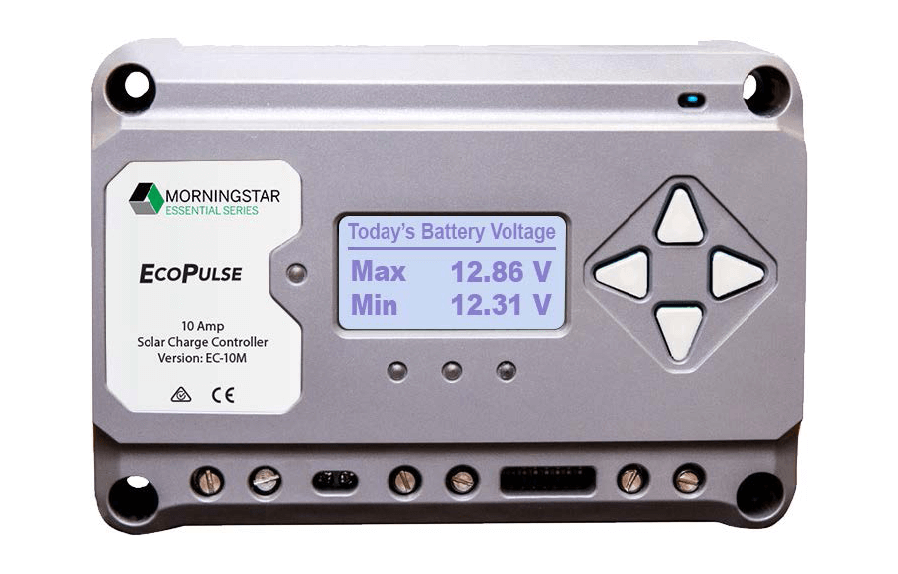

Metered version shows displays including:

  • Today's battery voltage - Min and max battery voltages recorded
  • Today's charge time - time spent in absorb, float and equalise charging
  • Today's energy - Ah to the battery and Ah to the load
  • Battery state of charge (SoC) icon with %
  • Solar Amps, Load Amps, Battery temperature
  • Battery voltage, Battery Amps, Charge state e.g. Absorb
  • See meter map for more detail

Features

  • Metered and non-metered versions available
  • Four stage battery charging
  • Dusk 'til dawn lighting control
  • Load control
  • Electronic and environmental protections
  • Programmable battery type via DIP switches
  • Further custom settings available on metered versions (see meter map)
  • 2 year warranty

Good to know

Technical Specifications

SKUEC-10EC-10MEC-20EC-20MEC-30EC-30M
System Battery Voltage 12V, 24V 12V, 24V 12V, 24V 12V, 24V 12V, 24V 12V, 24V
Max VOC 60V 60V 60V 60V 60V 60V
Connection Screw terminals Screw terminals Screw terminals Screw terminals Screw terminals Screw terminals
Weight (kg) 0.4 0.4 0.4 0.4 0.4 0.4
Warranty 2 2 2 2 2 2
IP Rating IP20 IP20 IP20 IP20 IP20 IP20
Intrastat Commodity Code 90328900 90328900 90328900 90328900 90328900 90328900

Downloads / Documents

*see manufacturer's documentation for further information
