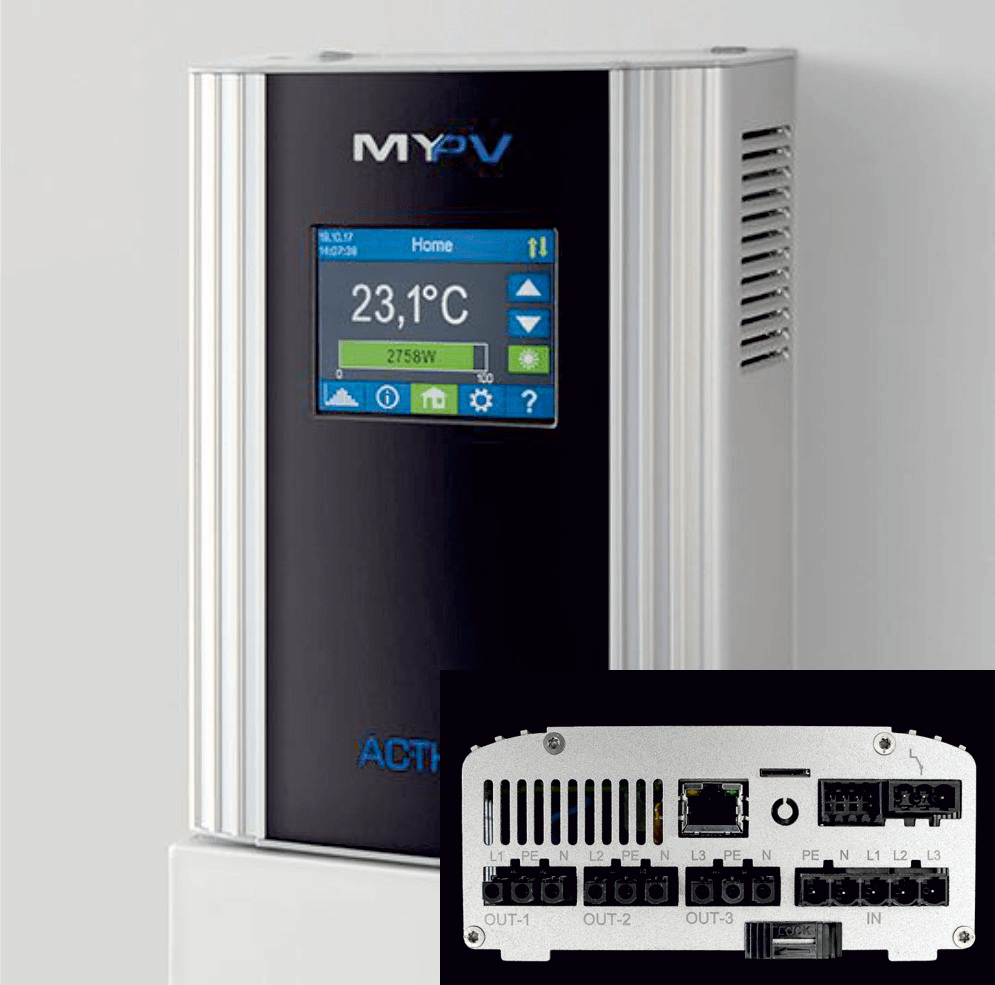

MY-PV AC•THOR 9s
The AC•THOR 9s is a Photovoltaic-Power-Manager for hot-water and space-heating for use in 3-phase systems.
Select model
| Variant | Price (exc VAT) | ||
|---|---|---|---|
|
AC-THOR-9S
PV Heating Power Controller 9kW - 3 phase |
Regular price
£722.91
Regular price
Unit price
per
|
||
MY-PV AC•THOR 9s
The AC•THOR 9s is a Photovoltaic-Power-Manager for hot-water and space-heating for use in 3-phase systems.
Expanding on the features of the standard AC•THOR this 9s version can deliver up to 9kW, has 3 controllable outputs and is suitable for 3-phase immersion heaters (with common neutral conductors) or with three separate 3kW single phase heaters run on separate phases.
Compatible with the below signal sources for export measurement:
- Carlo Gavazzi (Approved for meter type EM24 with Modbus TCP)
- MY-PV Power Meter
- SMA Sunny Home Manager
- Victron (via Modbus)
- + more
In off-grid systems it can respond to frequency rise to divert surplus energy once the battery is full into heating loads.
Includes:
- 0-9kW linear output
- Colour touchscreen display
- Warranty: 2 years
- Made in Austria
Application note:
- Designed for use in systems with Solar PV inverters. Systems with other generation sources may be possible, please consult documentation/the manufacturer if in doubt.
Good to know
Technical Specifications
| SKU | AC-THOR-9S |
|---|---|
| Weight (kg) | 2.5 |
| Intrastat Commodity Code | 85044090 |
Downloads /
Documents
Related Products
MY-PV Power Meter
The MY-PV Power Meter allows excess solar generation (normally exported to the grid) to be automatically diverted to heaters in order to maximise the self-consumption of your PV system. It detects the energy flows of the PV system and transmits the excess energy data to the PV Power Manager AC•THOR, AC•THOR 9s.
*see manufacturer's documentation for further information
