Schletter Fix-Z-7 and Fix-Z-15
For flat trapezoidal sheet roofs with less than a 10-degree slope, module installation parallel to the roof is not always optimal, due to low yields and inadequate module self-cleaning.
Select model
| Variant | Price (exc VAT) | ||
|---|---|---|---|
|
SCH-121010-202

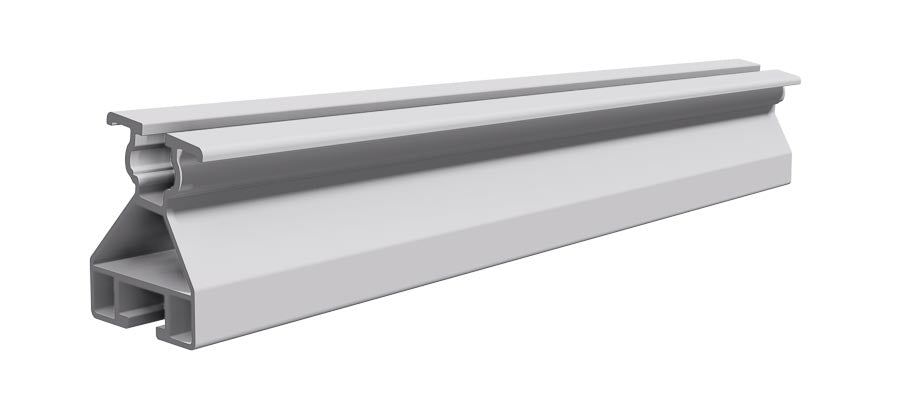

FixZ-7 lower system rail18 - 450mm (D) |
Regular price
£9.00
Regular price
Unit price
per
|
||
|
SCH-121008-202

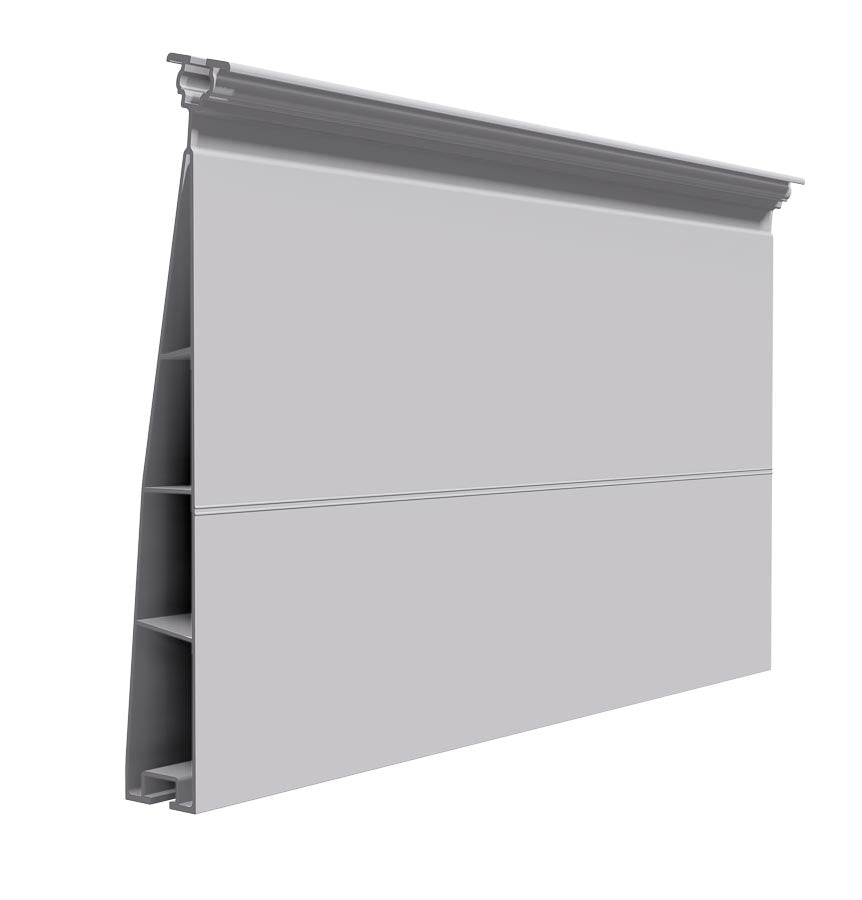

FixZ-15 upper system rail18 - 450mm (D) |
Regular price
£28.43
Regular price
Unit price
per
|
||
|
SCH-121009-202

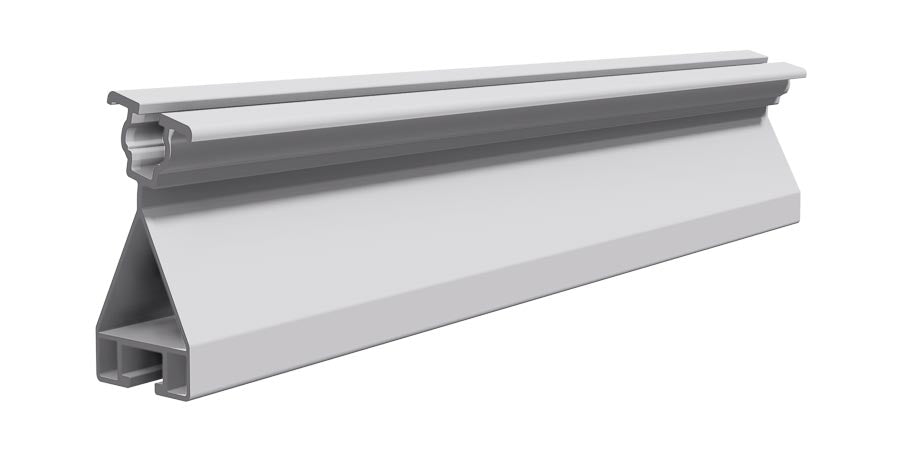

FixZ-15 lower system rail18 - 450mm (D) |
Regular price
£10.18
Regular price
Unit price
per
|
||
Schletter Fix-Z-7 and Fix-Z-15
For flat trapezoidal sheet roofs with less than a 10-degree slope, module installation parallel to the roof is not always optimal, due to low yields and inadequate module self-cleaning.
The FixZ system can be used for all common 60- to 72-cell framed modules to increase tilt angle giving an increase in tilt angles of between 5 and 7 degrees with FixZ-7, and 11 to 15 degrees with FixZ-15.
Pairs of Upper and Lower 450mm profiles are used, each in conjunction with a SingleFix-V Solo twin kit.
For use with Rapid 16 module clamps only
Good to know
Technical Specifications
| SKU | SCH-121010-202 | SCH-121008-202 | SCH-121009-202 |
|---|---|---|---|
| Rail Type | Classic | Classic | Classic |
| Weight (kg) | 0.5 | 0.5 | 0.5 |
| Intrastat Commodity Code | 76109090 | 76109090 | 76109090 |
Downloads /
Documents
*see manufacturer's documentation for further information
