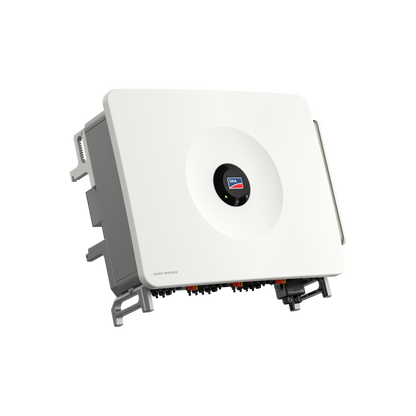

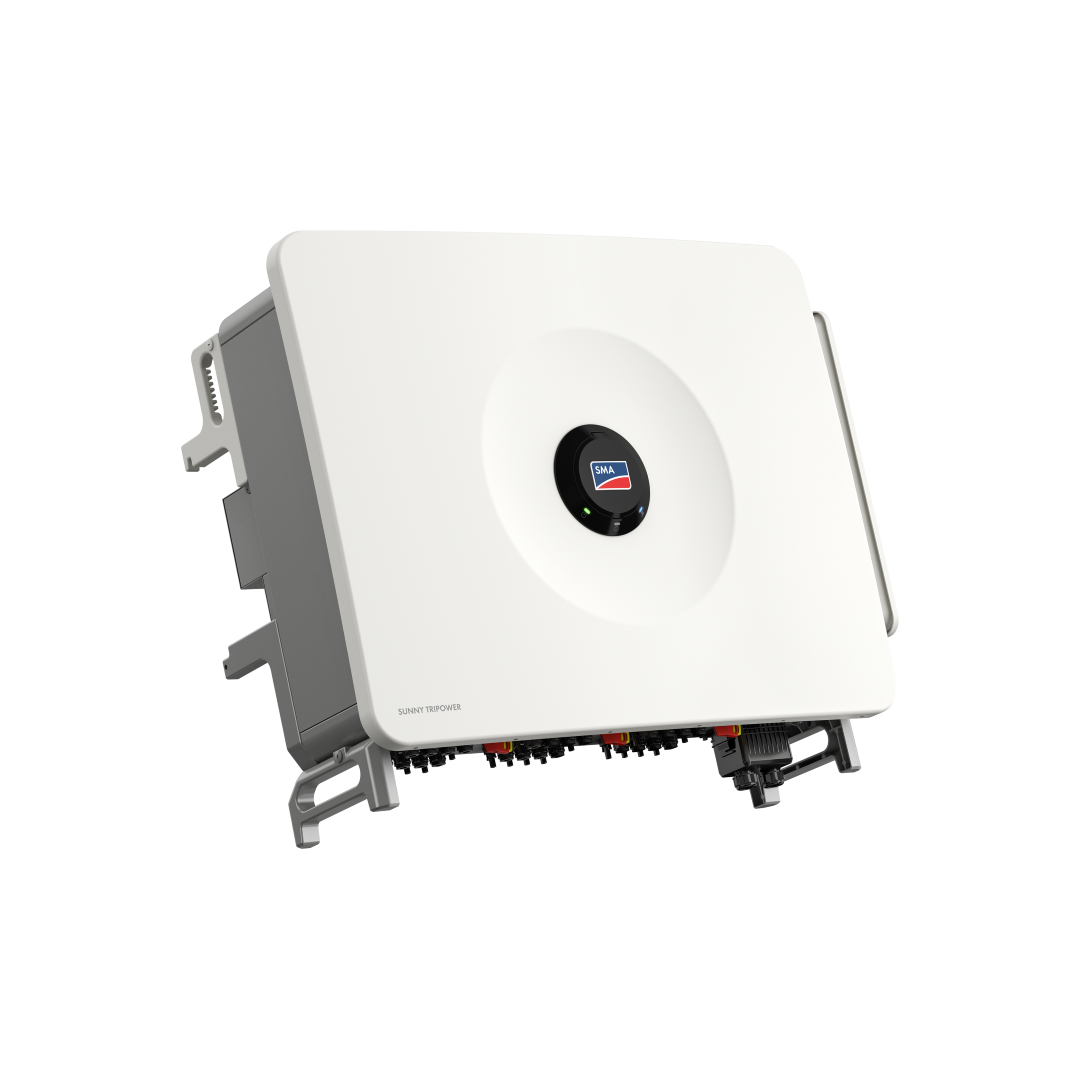

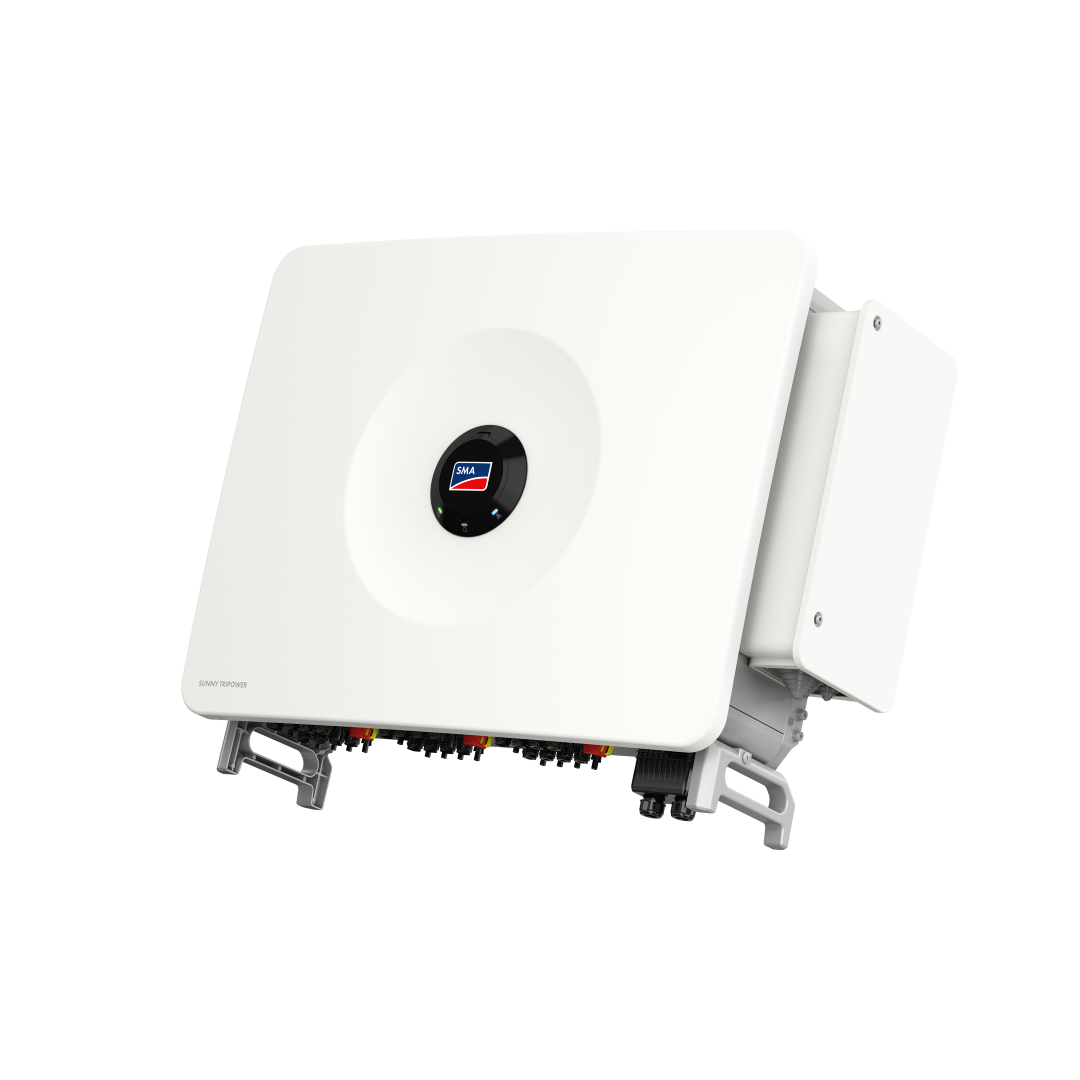

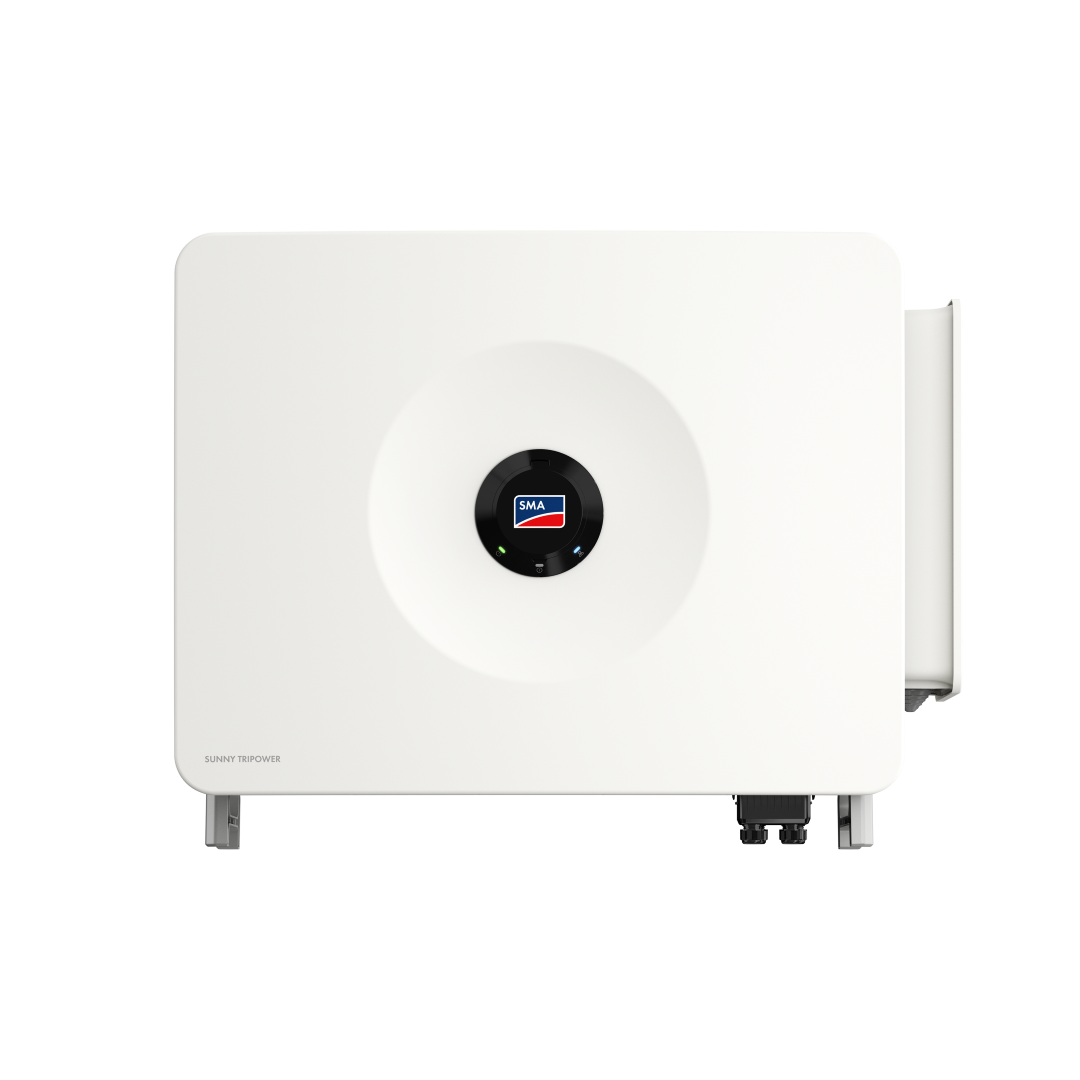

SMA Sunny Tripower 125

SMA Sunny Tripower 125

The Sunny Tripower 125 is the ideal inverter for decentralized system structures in the commercial sector up to the megawatt range. With an output of 125 kilowatts and 12 MPP trackers, it enables highly efficient and economical PV systems both on open spaces and complex roof systems. Installers and system operators benefit from easy integration thanks to SMA’s tried-and-tested inverter communication system.

With communication via SMA Speedwire and Modbus, Sunny Tripower 125 facilitates easy integration of SMA commercial storage systems and charging infrastructure. SMA ShadeFix maximizes system performance even when some modules are located in shaded areas. The automatic integrated monitoring service SMA Smart Connected detects faults early on and thus helps to maximize yields. The integrated arc-fault circuit interrupter SMA ArcFix helps to make the PV system even safer.

• For large rooftop and ground-mounted systems up to the MW range
• 12 MPP trackers
• 24 strings with 1100 VDC Sunclix connector
• 125 kW for standard 400 VAC 3-phase grid connection
• Fast commissioning without additional DC combiners
• Peak efficiency of 98.4%
• Premium monitoring service for reliable system performance
• Maximum yields thanks to the integrated software solution SMA ShadeFix
