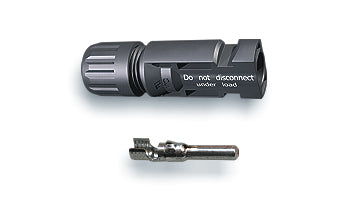

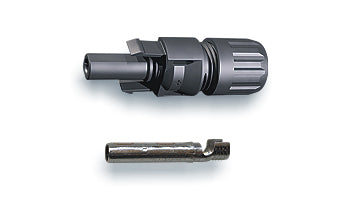

Stäubli MC4 Connectors
- Locking fit
- IEC 62852 DC voltage rating - 1000V
- IEC 62852 DC Current rating - 39A (4-6sqmm cable), 45A (10sqmm cable)
- Temperature rating: -40°C - +90°C
- Degree of protection while mated IP65/IP68 (1m, 1h)
Please ensure you choose the appropriate connector for the outside diameter (OD) of cable being used.
Good to know
Technical Specifications
SKU | C1-4/MCF(2) | PV-KBT4/6X-UR | PV-KST4/6X-UR | C1-10/MCF | C1-10/MCM |
---|---|---|---|---|---|
Weight (kg) | 0.01 | - | - | 0.02 | 0.02 |
Intrastat Commodity Code | 85366990 | 85366990 | 85366990 | 85366930 | 85366990 |
Downloads /
Documents
*see manufacturer's documentation for further information
