Staubli MC4 Toolset
This set contains all the tools specifically designed for professional field installation of the entire Original MC4 product family. The assembly of PV connectors can make or break a project, by using the Stäubli toolset for PV connector field installation you will improve the quality and reliability of the PV DC connection. Supplied with crimp die-set suitable for 4, 6 and 10 sq mm connectors.
Select model
| Variant | Price (exc VAT) | ||
|---|---|---|---|
|
PV-MC4-TOOLSET
Staubli MC4 & Evo2 connector assembly tool case |
Regular price
£597.63
Regular price
Unit price
per
|
||
Staubli MC4 Toolset
This set contains all the tools specifically designed for professional field installation of the entire Original MC4 product family. The assembly of PV connectors can make or break a project, by using the Stäubli toolset for PV connector field installation you will improve the quality and reliability of the PV DC connection. Supplied with crimp die-set suitable for 4, 6 and 10 sq mm connectors.

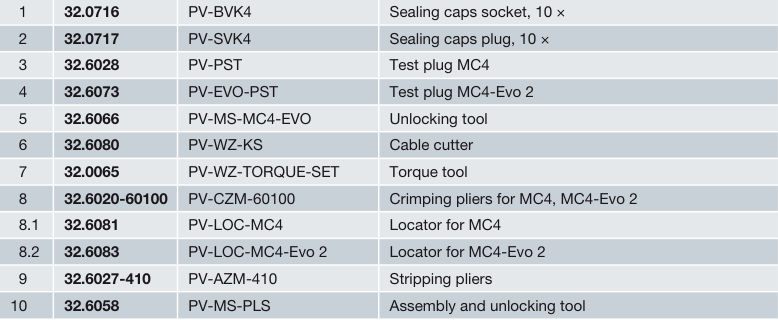

The toolset consists of:
| Code | Description | Quantity |
| PV-BVK4 | Sealing caps socket | 10 |
| PV-SVK4 | Sealing caps plug | 10 |
| PV-PST | Test plug MC4 | 1 |
| PV-EVO-PST | Test plug MC4-Evo 2 | 1 |
| PV-MS-MC4-EVO | Unlocking tool | 1 |
| PV-WZ-KS | Cable cutter | 1 |
| PV-WZ-TORQUE-SET | Torque tool | 1 |
| PV-CZM-60100 | Crimping pliers for MC4, MC4-Evo 2 | 1 |
| PV-LOC-MC4 | Locator for MC4 | 1 |
| PV-LOC-MC4-Evo 2 | Locator for MC4-Evo 2 | 1 |
| PV-AZM-410 | Stripping pliers | 1 |
| PV-MS-PLS | Assembly and unlocking tool | 1 |
Quick Links
Good to know
Technical Specifications
| SKU | PV-MC4-TOOLSET |
|---|---|
| Intrastat Commodity Code | 82079091 |
*see manufacturer's documentation for further information
