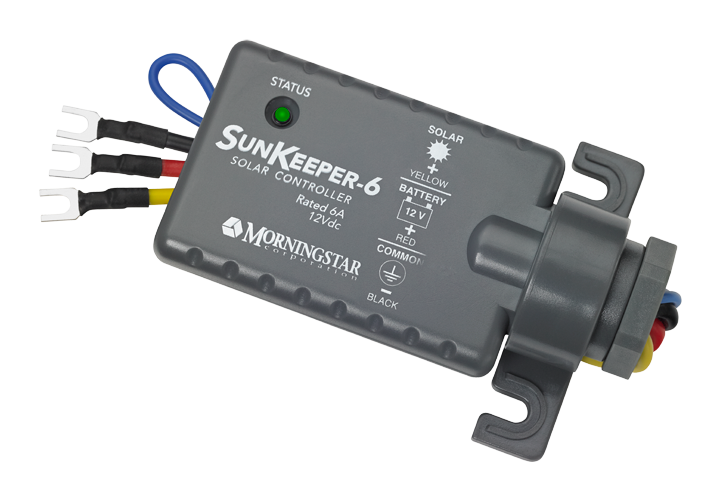

Morningstar SunKeeper
These are simple controllers which mount directly to the solar module junction box and eliminate the need for additional controller housing. Fully encapsulated and IP65 outdoor rated, they are approved for hazardous locations and high temperatures (up to 70°C). Connection is via flying leads. Use with sealed or vented batteries is field selectable. 12V. Bi-colour LED indicates charging, operation & faults.
- 5 year warranty
Good to know
Technical Specifications
SKU | SK-6 | SK-12 |
---|---|---|
System Battery Voltage | 12V | 12V |
Max VOC | 30V | 30V |
Connection | Tails | Tails |
Weight (kg) | 0.2 | 0.19 |
Warranty | 5 | 5 |
IP Rating | IP65 | IP65 |
Intrastat Commodity Code | 90328900 | 90328900 |
Downloads /
Documents
*see manufacturer's documentation for further information
