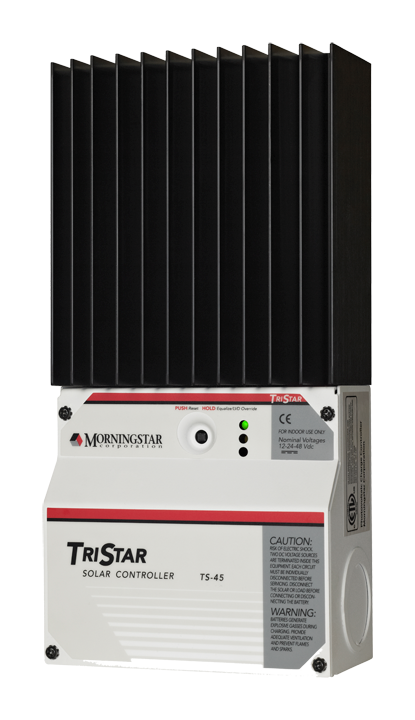

Morningstar TriStar
These powerful tropicalised three-function PWM controllers provide reliable solar battery charging, load control or diversion regulation to divert excess power to a dump load for use in solar, wind or hydroelectric systems. (Two or more controllers may be used to provide multiple functions). Large heat sink enables operation at up to 45°C without de-rating. 3 LED's indicate battery status, alarms and faults. Optional LCD digital backlit display (included with -M version) provides system & controller information: battery voltage; current; temperature; amp-hours and error mode. Versions mount either on face of the controller or remotely. For use in either 12, 24 or 48V systems. Fully adjustable with DIP switches. RS232 communication for custom settings, data logging, remote monitoring/control. Reverse polarity, short circuit, over-current, high temperature and over-voltage protection. Operation from - 40 to+ 45°C. Terminals take up to 35sqmm cables.
Select model
| Variant | Price (exc tax) | ||
|---|---|---|---|
|
TS-45
Morningstar Tristar 45 A charge or load 3 function 12/24/48V |
Regular price
£186.59
Regular price
Unit price
per
|
||
|
TS-60
Morningstar Tristar 60 A charge or load 3 function 12/24/48V |
Regular price
£248.79
Regular price
Unit price
per
|
||
|
TS-60M
Morningstar Tristar 60 A charge or load 3 funcion with meter |
Regular price
£358.71
Regular price
Unit price
per
|
||
Morningstar TriStar
These powerful tropicalised three-function PWM controllers provide reliable solar battery charging, load control or diversion regulation to divert excess power to a dump load for use in solar, wind or hydroelectric systems. (Two or more controllers may be used to provide multiple functions). Large heat sink enables operation at up to 45°C without de-rating. 3 LED's indicate battery status, alarms and faults. Optional LCD digital backlit display (included with -M version) provides system & controller information: battery voltage; current; temperature; amp-hours and error mode. Versions mount either on face of the controller or remotely. For use in either 12, 24 or 48V systems. Fully adjustable with DIP switches. RS232 communication for custom settings, data logging, remote monitoring/control. Reverse polarity, short circuit, over-current, high temperature and over-voltage protection. Operation from - 40 to+ 45°C. Terminals take up to 35sqmm cables.
- 5 year warranty
Quick Links
Good to know
Technical Specifications
| SKU | TS-45 | TS-60 | TS-60M |
|---|---|---|---|
| System Battery Voltage | 12V, 24V, 48V | 12V, 24V, 48V | 12V, 24V, 48V |
| Connection | Screw terminals | Screw terminals | Screw terminals |
| Weight (kg) | 2.1 | 2.1 | 2.5 |
| Warranty | 5 | 5 | 5 |
| IP Rating | IP20 | IP20 | IP20 |
| Intrastat Commodity Code | 90328900 | 90328900 | 90328900 |
*see manufacturer's documentation for further information
