Victron Battery Balancer
Used to equalize the state of charge of two series connected 12V batteries, or of several parallel strings of series connected batteries.
Select model
| Variant | Price (exc tax) | ||
|---|---|---|---|
|
VBB-BATAL
Victron Battery Balancer |
Regular price
£45.44
Regular price
Unit price
per
|
||

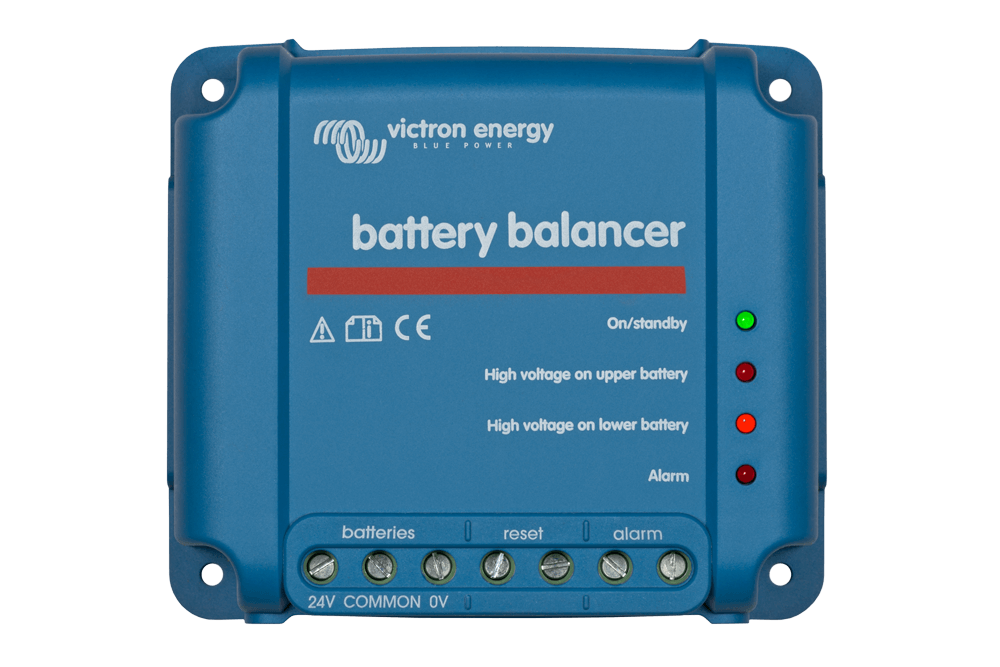

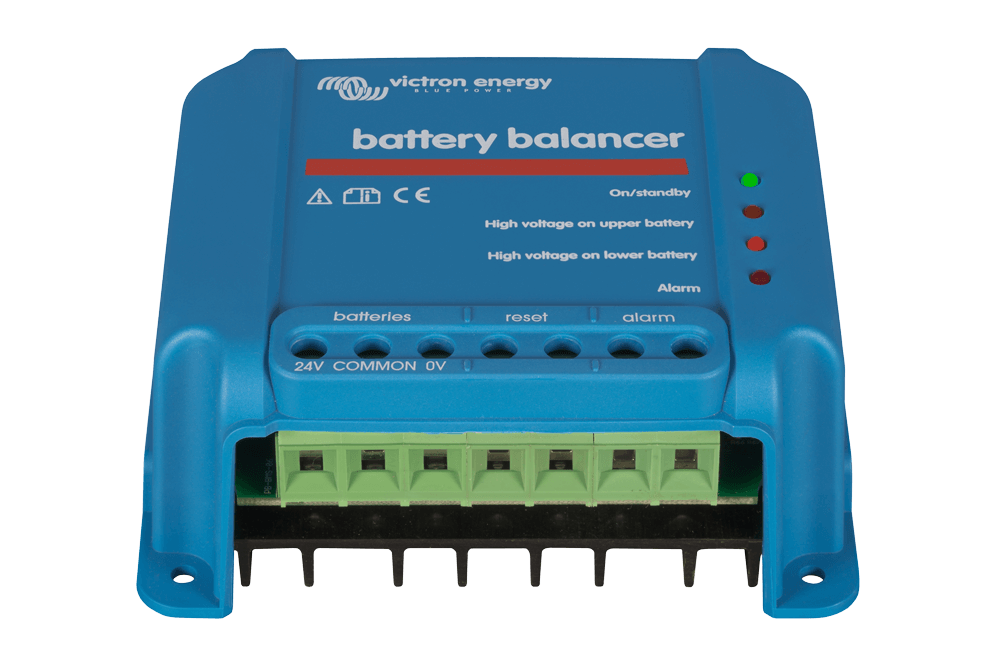

Victron Battery Balancer
Used to equalize the state of charge of two series connected 12V batteries, or of several parallel strings of series connected batteries.
When the charge voltage of a 24V battery system increases to more than 27,3V, the Battery Balancer will turn on and compare the voltage over the two series connected batteries. The Battery Balancer will draw a current of up to 0,7A from the battery (or parallel connected batteries) with the highest voltage. The resulting charge current differential will ensure that all batteries will converge to the same state of charge.
If needed, several balancers can be paralleled.
A 48V battery bank can be balanced with three Battery Balancers.
Quick Links
Good to know
Technical Specifications
| SKU | VBB-BATAL |
|---|---|
| Weight (kg) | 0.4 |
| Warranty | 5 |
| Intrastat Commodity Code | 85044055 |
*see manufacturer's documentation for further information
