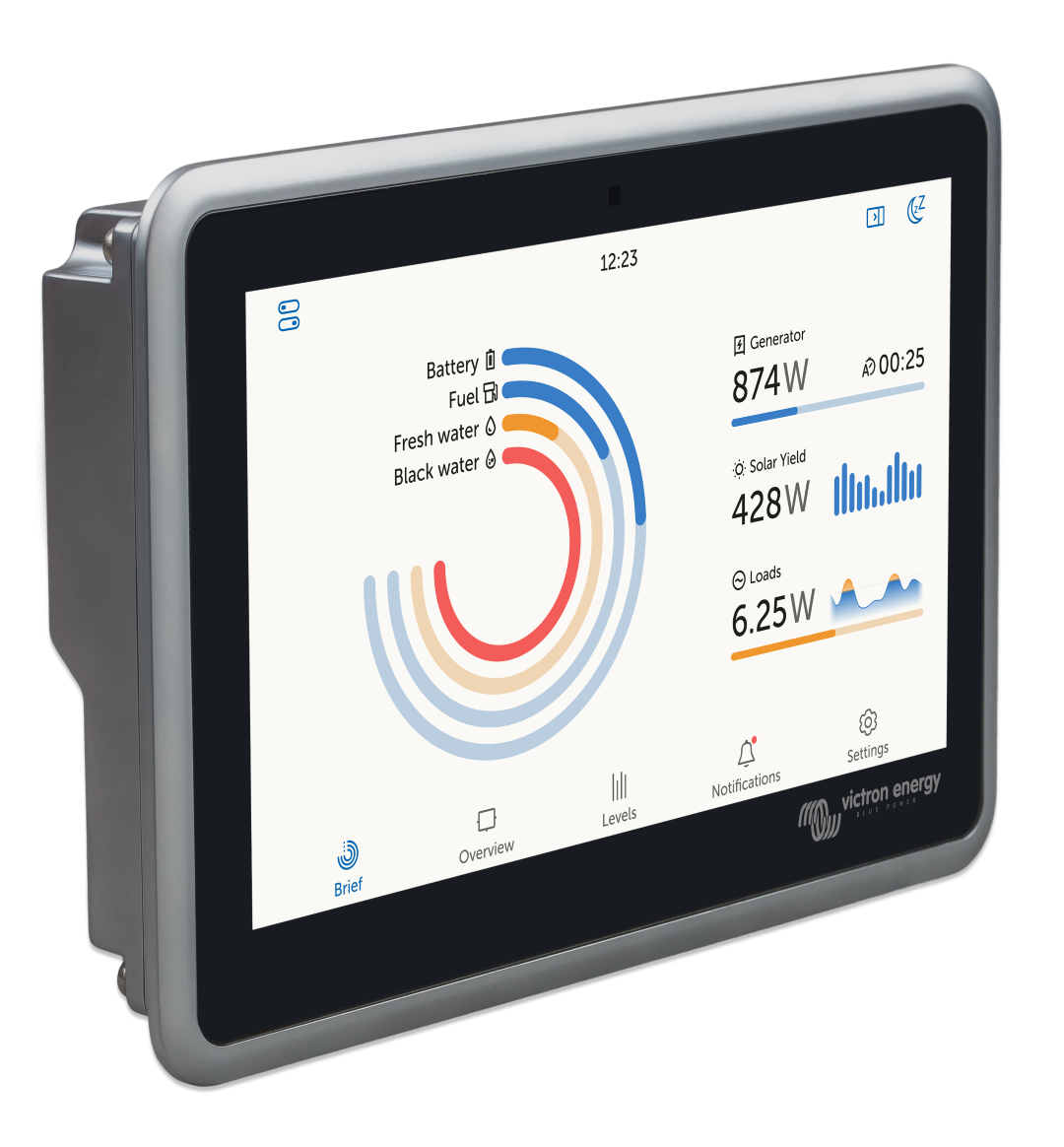

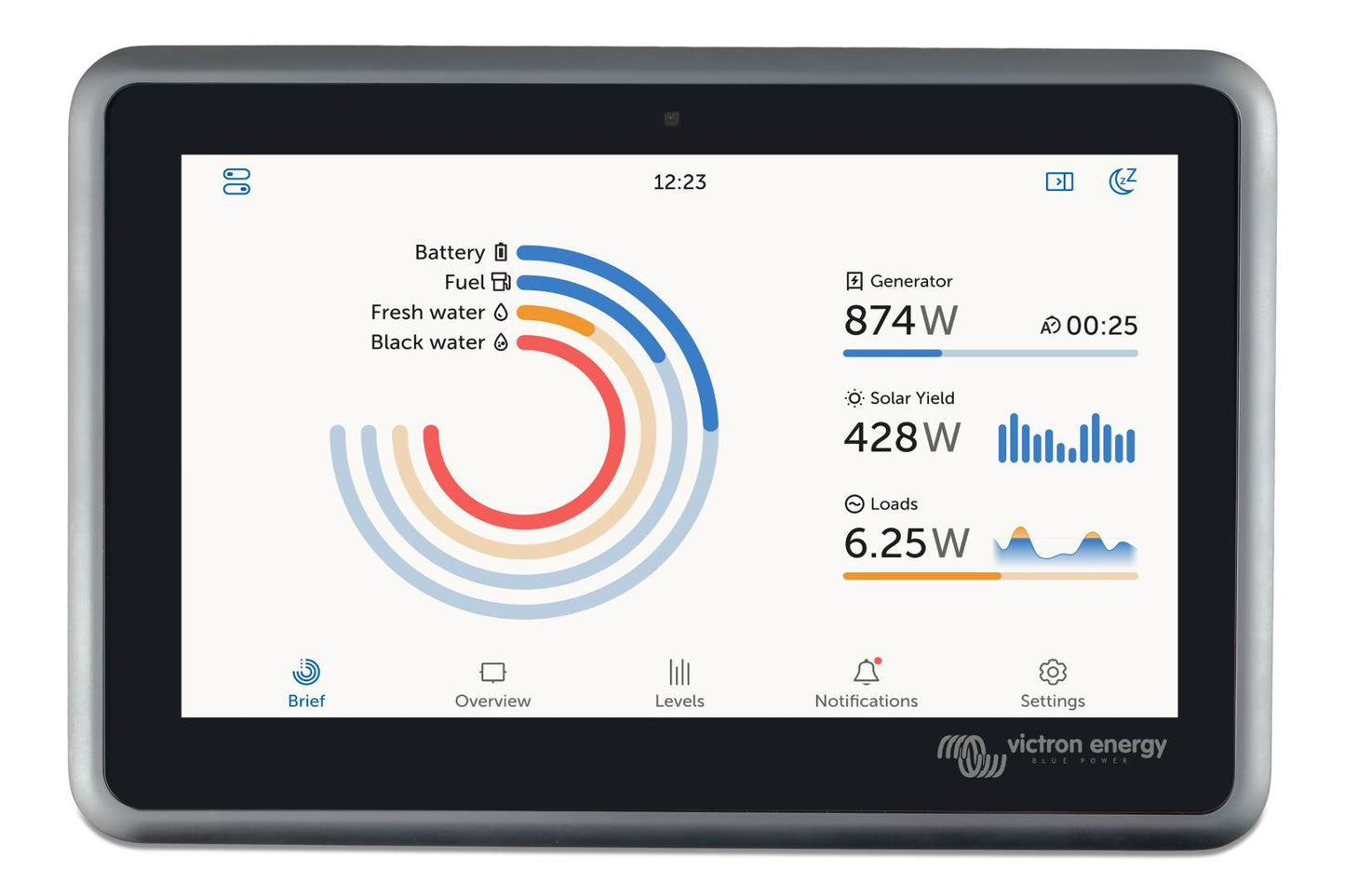

Victron Ekrano GX
The Ekrano GX is a fully featured communication centre, built with the latest remote monitoring capabilities. Gain ultimate control with this latest addition to the GX family and feel the power of truly being in charge.
Check real-time data and analysis on your integrated 7-inch touchscreen display, running on the all-new and intuitive Venus OS. The Ekrano GX is a flexible powerhouse that will integrate into any Victron system complete with a range of hardware connectivity to suit every need. It enables you to access and control your system from anywhere, through the Victron Remote Management (VRM) portal and VictronConnect app. Enter a new era of full and dynamic system control with the Ekrano GX.
Select model
| Variant | Price (exc tax) |
|---|---|
|
V-EKRANO-GX
Victron Ekrano GX |
Regular price
£500.64
Regular price
Unit price
per
|
Victron Ekrano GX
The Ekrano GX is a fully featured communication centre, built with the latest remote monitoring capabilities. Gain ultimate control with this latest addition to the GX family and feel the power of truly being in charge.
Check real-time data and analysis on your integrated 7-inch touchscreen display, running on the all-new and intuitive Venus OS. The Ekrano GX is a flexible powerhouse that will integrate into any Victron system complete with a range of hardware connectivity to suit every need. It enables you to access and control your system from anywhere, through the Victron Remote Management (VRM) portal and VictronConnect app. Enter a new era of full and dynamic system control with the Ekrano GX.

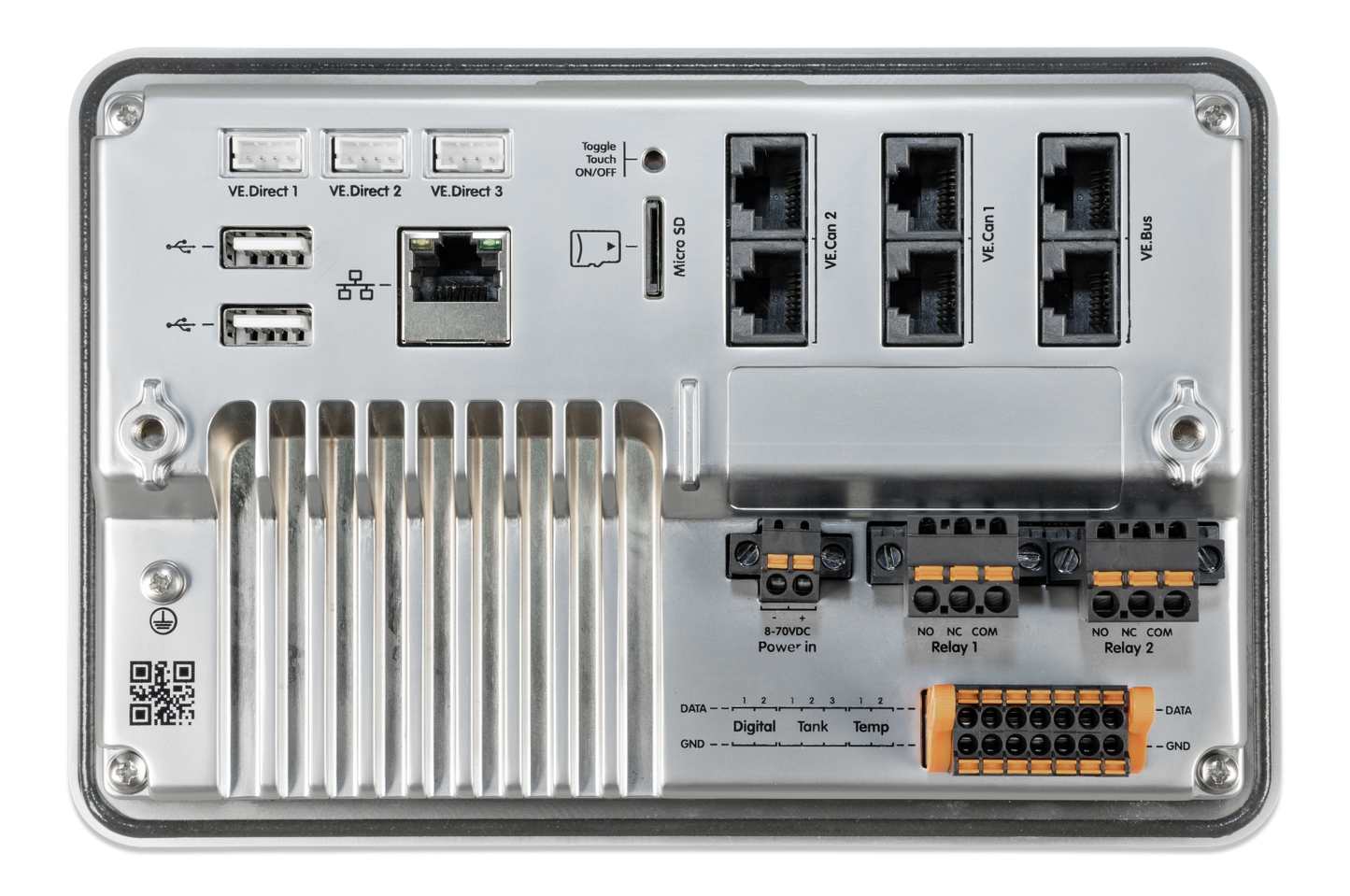

Features:
- 7-inch TFT LCD Touchscreen (1024x600 pixels)
- 3 x VE.Direct ports
- 2 x VE.Can ports
- 1 x VE.Bus port
- 2 x Digital Inputs
- 3 x Resistive Tank Level Inputs
- 2 x Temperature Sensor Inputs
- 2 x Programmable Relay
- 2 x USB Host Ports
- 1 x MicroSD Card Slot
- Ethernet
- WiFi
- Bluetooth
Good to know
Technical Specifications
| SKU | V-EKRANO-GX |
|---|---|
| Connectivity | Ethernet, WiFi, VE.Bus, VE.Direct, VE.Can |
| Weight (kg) | 0.35 |
| Packaging Height | 220 |
| Packaging Width | 120 |
| Packaging Depth | 60 |
| Warranty | 5 |
| Intrastat Commodity Code | 85176100 |
