Victron MultiPlus 3000VA - 5000VA

Victron Energy Logo
From £728.69
From £728.69
Sale Sold out
Shipping calculated at checkout.

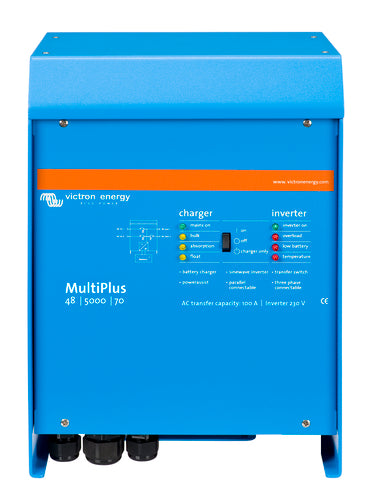

The MultiPlus is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology and a high-speed AC transfer switch in a single compact enclosure.

See full details

Retail customers
Many of the products we supply require training and experience to install, we recommend seeking the assistance of a professional to help you with your project.

Find the right installer for you

Trade customers
Please login or apply for a trade account for trade pricing, check stock and order online.

Log in / Apply for a trade account

Select model

Variant Price (exc VAT)
VM-12/3000/120-16
Victron MultiPlus 3000VA, 12V inverter charger, 16A transfer
£1,167.87
£1,167.87
VM-12/3000/120-50
Victron MultiPlus 3000VA, 12V inverter charger, 50A transfer
£1,260.52
£1,260.52
VM-24/3000/70-16
Victron MultiPlus 3000VA, 24V inverter charger, 16A transfer
£1,051.71
£1,051.71
VM-48/3000/35-16
Victron MultiPlus 3000VA, 48V inverter charger, 16A transfer
£728.69
£728.69
VM-48/3000/35-50
Victron MultiPlus 3000VA, 48V inverter charger, 50A transfer
£760.76
£760.76
VM-24/5000/120-100
Victron MultiPlus 5000VA, 24V inverter charger
£1,853.80
£1,853.80
VM-48/5000/70-100
Victron MultiPlus 5000VA, 48V inverter charger
£1,085.92
£1,085.92
(exc VAT)
Login for trade prices

Victron MultiPlus 3000VA - 5000VA

The MultiPlus is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology and a high-speed AC transfer switch in a single compact enclosure.

Features

  • Two AC Outputs*. The main output has no-break functionality to take over supply in event of mains failure or when generator is disconnected. The second output is live only when grid or generator is connected.
  • Parallel operation. Up to 6 Multiplus units can be connected in parallel to achieve higher power output.
  • Three phase capability.
  • Lithium ion battery compatible.
  • PowerControl. A maximum generator or grid current can be set to avoid overloading the supply.
  • PowerAssist. Allows power to be taken from the battery to support the generator or grid and power peak loads.
  • Four stage battery charging.
  • 12 & 24 V models include a 4A trickle charge output for an engine or generator starter battery.
  • Easy system configuration. Either using integrated DIP switches or with a PC and Victron configuration software.
  • 5 years warranty

Quick Links

Technical Specifications

Good to know

Technical Specifications

SKUVM-12/3000/120-16VM-12/3000/120-50VM-24/3000/70-16VM-48/3000/35-16VM-48/3000/35-50VM-24/5000/120-100VM-48/5000/70-100
Power Rating 2400W 2400W 2400W 2400W 2400W 4000W 4000W
System Battery Voltage 12V 12V 24V 48V 48V 24V 48V
Phases Single phase Single phase Single phase Single phase Single phase Single phase Single phase
Connectivity VE.Bus VE.Bus VE.Bus VE.Bus VE.Bus VE.Bus VE.Bus
Connection M8 (battery), Screw terminals (AC) M8 (battery), Screw terminals (AC) M8 (battery), Screw terminals (AC) M8 (battery), Screw terminals (AC) M8 (battery), Screw terminals (AC) M8 (battery), M6 (AC) M8 (battery), M6 (AC)
Height 362 362 362 362 362 444 444
Width 258 258 258 258 258 328 328
Depth 218 218 218 218 218 240 240
Weight (kg) 21.05 21.65 18 20.75 21.7 35 35
Warranty 5 5 5 5 5 5 5
IP Rating IP21 IP21 IP21 IP21 IP21 IP21 IP21
On Grid / Off Grid Off Grid Off Grid Off Grid Off Grid Off Grid Off Grid Off Grid
Lithium Compatibility Yes* Yes* Yes* Yes* Yes* Yes* Yes*
Intrastat Commodity Code 85044085 85044085 85044085 85044085 85044085 85044085 85044085

*see manufacturer's documentation for further information
