Victron Phoenix Smart IP43 Chargers

Victron Phoenix Smart IP43 Chargers

Phoenix Smart (3) adaptive 5-step chargers can provide charge to each of three battery banks or Phoenix (1+1) models have two outputs to provide 3A to the starter-battery, the rest to the ‘house’ bank. Bluetooth enabled to allow the charger to be monitored and alarms set straight from your phone.

Features

• Bluetooth Smart enabled. Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings and to update the charger when new software features become available.

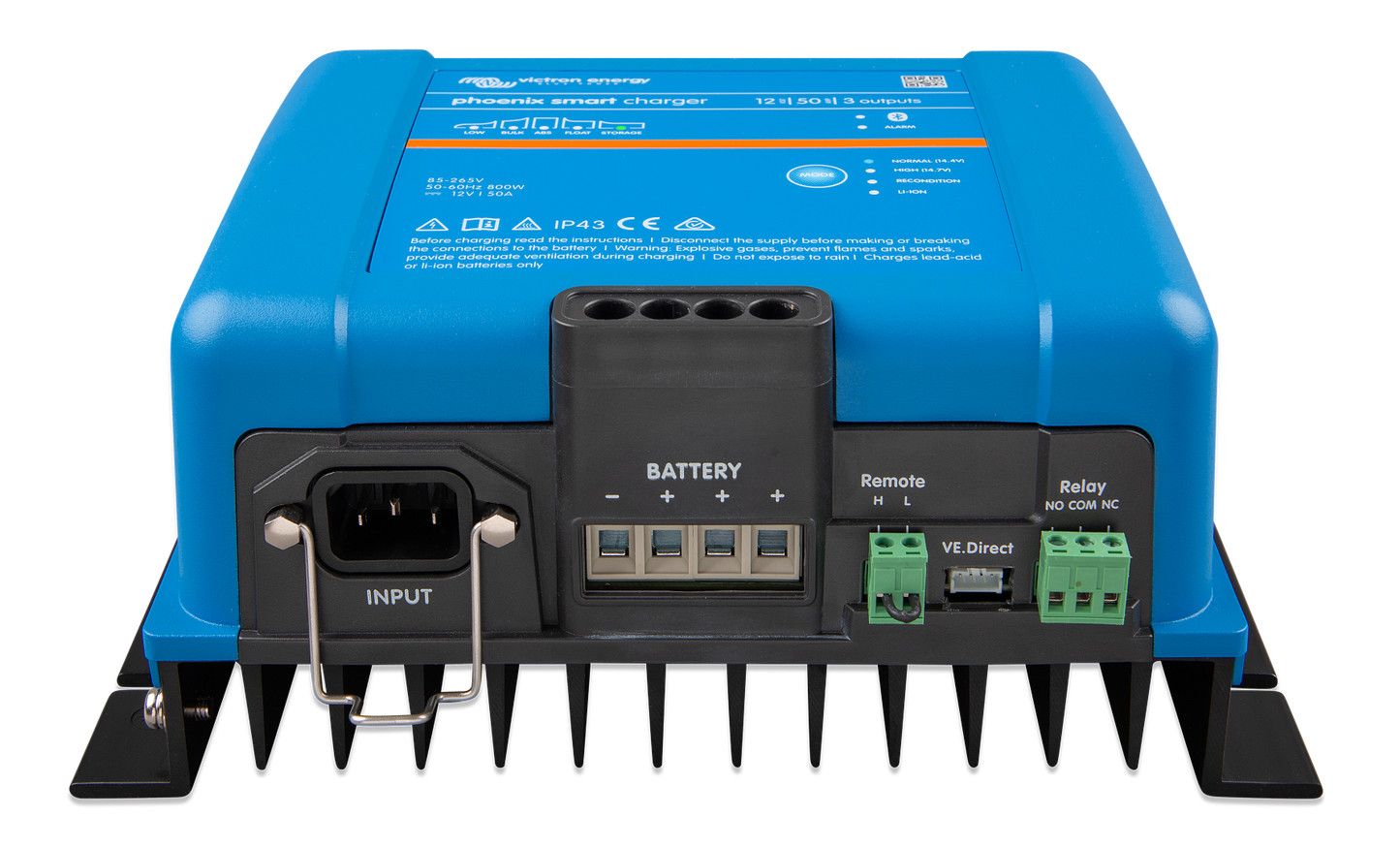

• Phoenix Smart (3): three full current outputs to charge 3 battery banks Each output can supply the full rated output current. But the total of the 3 outputs combined can never exceed the current rating of the charger.

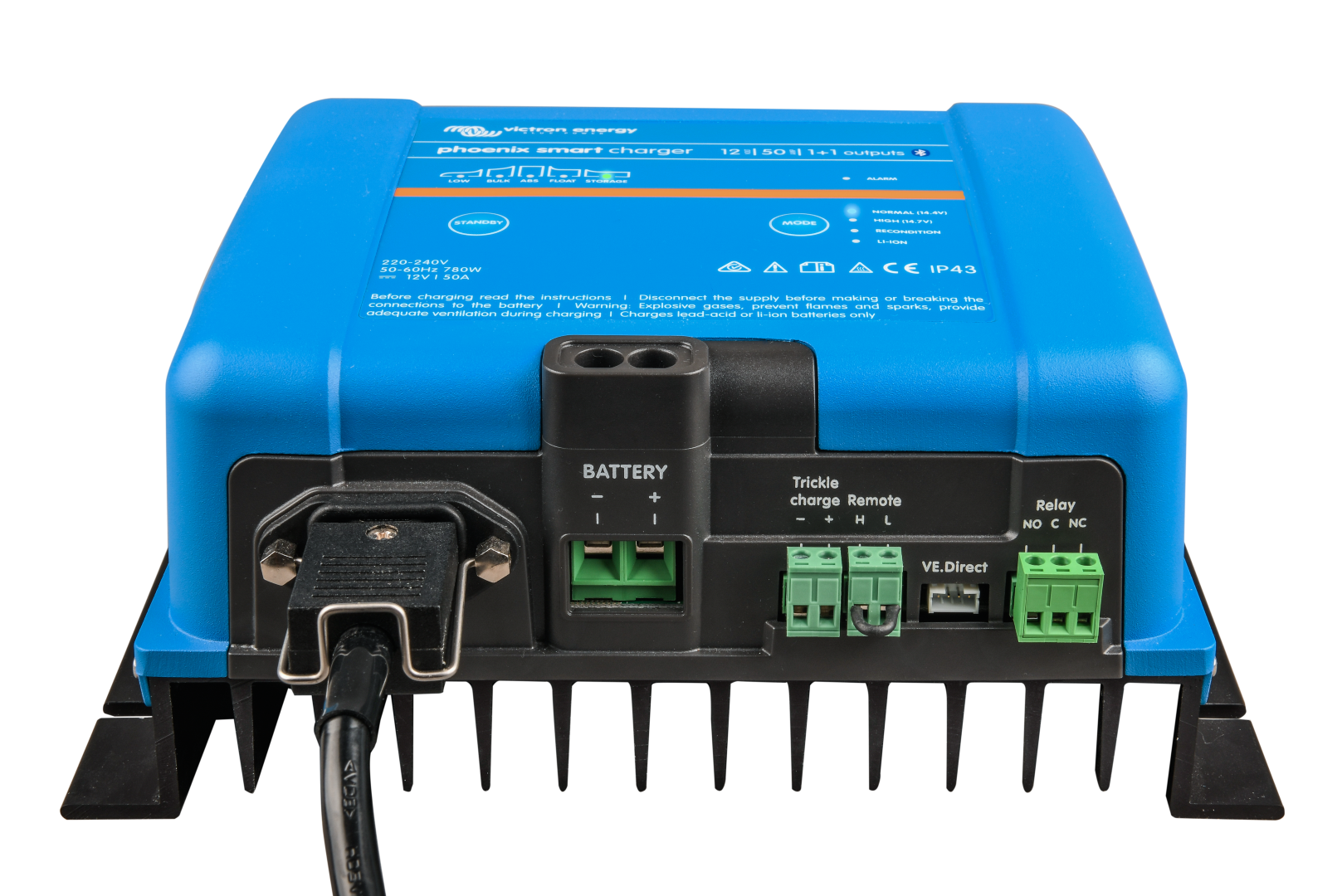

• Phoenix Smart (1+1): two outputs to charge 2 battery banks. The second output, limited to approximately 3A and with a slightly lower output voltage, is intended to top up a starter battery.
• Automatic voltage compensation. The charger compensates for voltage drop over the DC cabling by slightly increasing output voltage when the DC current increases. Please see the manual for details.
• Adaptive 5-stage charge algorithm: bulk – absorption – recondition – float – storage. The Phoenix Smart Charger features ‘adaptive’ battery management system that can be preset to suit different types of batteries. The ‘adaptive’ feature will automatically optimise the charge process relative to the way the battery is being used.
• The right amount of charge: variable absorption time. When only shallow discharges occur (a yacht connected to shore power for example) the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery will be fully charged.
• Also charges Li-ion (LiFePO4) batteries. Charger on-off control can be implemented by connecting a relay or open collector optocoupler output from a Li-ion BMS to the remote on-off port. Alternatively full control of voltage and current can be achieved with Bluetooth.
• Fully programmable charge algorithm. The charge algorithm can be programmed with help of Bluetooth or the VE.Direct interface. Three preprogrammed algorithms can be selected with the mode button (see specifications).
• Remote on-off. The remote on/off consists of two terminals: Remote H and Remote L. A remote on/off switch or relay contact can be connected between H and L. Alternatively, terminal H can be pulled high, or terminal L can be pulled low.
• VE.Direct interface. For a wired data connection to a Colour Control panel, PC or other devices using the VictronConnect app.
• Programmable relay. Can be programmed using the VE.Direct interface or a Bluetooth enabled device to trip on an alarm or other events.

• AC Power Cord must be ordered separately.
