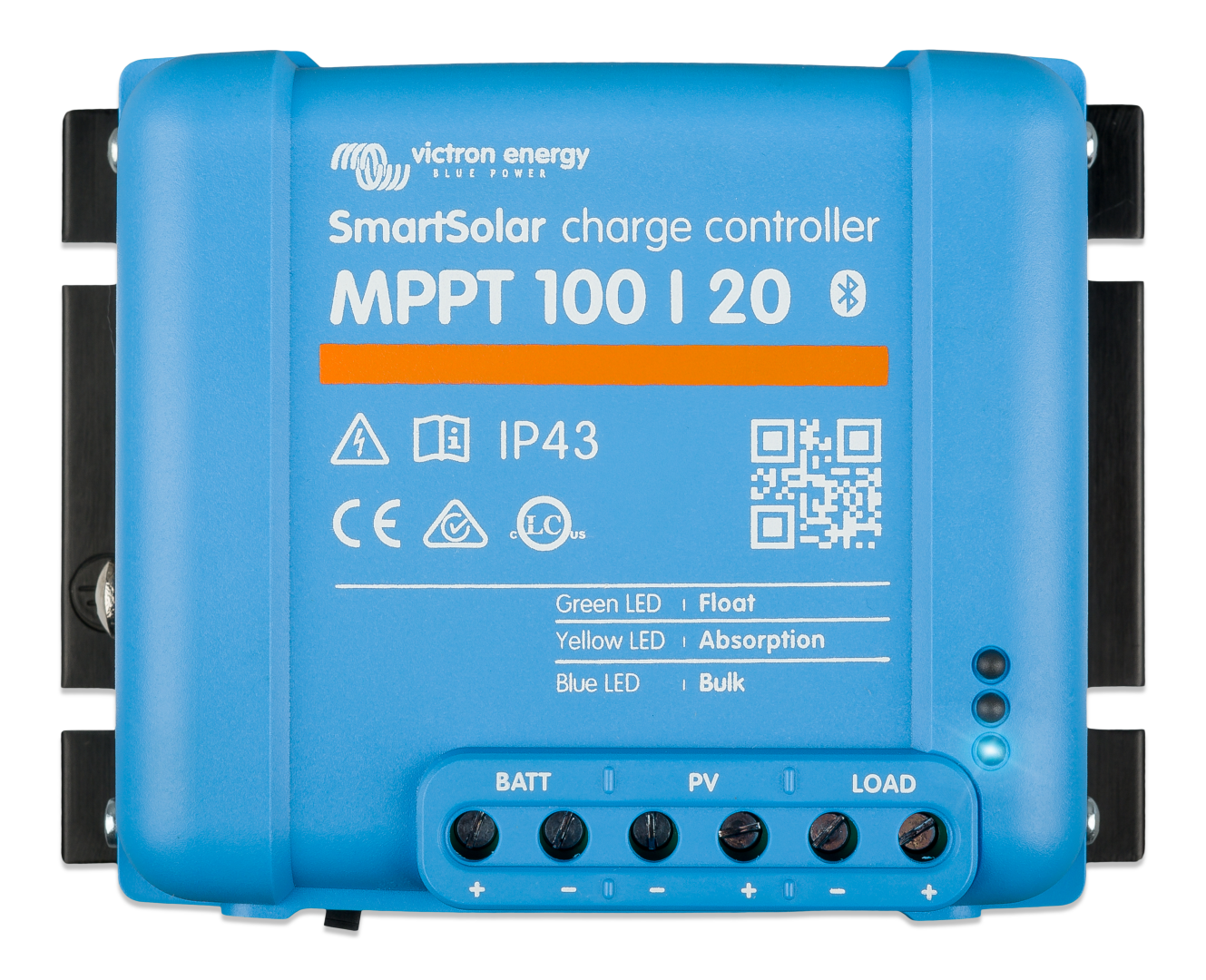

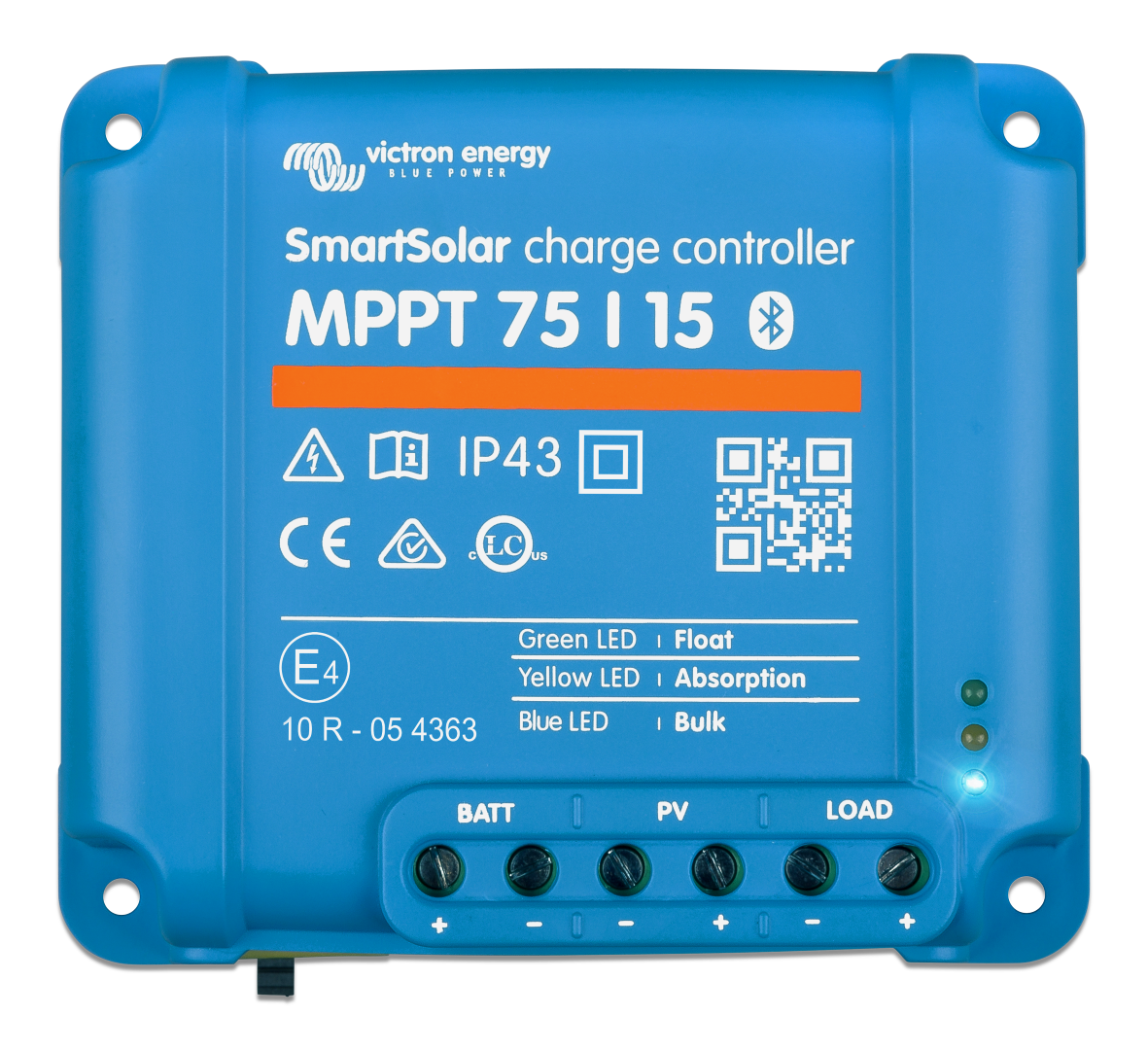

Victron SmartSolar Charge Controller MPPT 75/10 75/15 & 100/20

Victron Energy Logo
From £49.72
From £49.72
Sale Sold out
Shipping calculated at checkout.

These Victron SmartSolar Charge Controllers support a PV input with a maximum open circuit voltage of either 75V or 100V and have a maximum output of up to 20A. They work with and will automatically recognise 12V, 24V and 48V battery systems (48V with SmartSolar 100/20-48 only).

See full details

Retail customers
Many of the products we supply require training and experience to install, we recommend seeking the assistance of a professional to help you with your project.

Find the right installer for you

Trade customers
Please login or apply for a trade account for trade pricing, check stock and order online.

Log in / Apply for a trade account

Select model

Variant Price (exc VAT)
VSS-MPPT75/10
SmartSolar MPPT 10A ch.cont.75V input 12/24V out
£49.72
£49.72
VSS-MPPT75/15
SmartSolar MPPT 15A ch.cont.75V input 12/24V out
£53.72
£53.72
VSS-MPPT100/20-48V
SmartSolar MPPT 20A ch.cont.100V input 12/24/48V out
£71.35
£71.35
(exc VAT)
Login for trade prices

Victron SmartSolar Charge Controller MPPT 75/10 75/15 & 100/20

These Victron SmartSolar Charge Controllers support a PV input with a maximum open circuit voltage of either 75V or 100V and have a maximum output of up to 20A. They work with and will automatically recognise 12V, 24V and 48V battery systems (48V with SmartSolar 100/20-48 only).

  • Internal Bluetooth for wireless communication with smartphones or tablets.
  • Ultra-fast Maximum Power Point Tracking (MPPT) for maximum energy harvest.
  • Advanced Maximum Power Point Detection in case of partial shading conditions
  • VE.Direct communication port
  • Up to 98% efficient
  • Load output, connect ≤20A loads to be automatically disconnected/reconnected by the charge controller to stop the battery being over discharged
    • ≤1A on 48V model
  • Electronic protection:
    • Battery reverse polarity
    • PV reverse polarity / Output short circuit / Over temperature
  • Internal temperature sensor, compensates absorption and float charge voltages
  • 6 mm² screw terminals
  • 5 years warranty

Quick Links

Technical Specifications

Downloads

Good to know

Technical Specifications

SKUVSS-MPPT75/10VSS-MPPT75/15VSS-MPPT100/20-48V
System Battery Voltage 12V, 24V 12V, 24V 12V, 24V, 36V, 48V
Max VOC 75V 75V 100V
MPPT Trackers 1 1 1
Connectivity Bluetooth, VE.Direct Bluetooth, VE.Direct Bluetooth, VE.Direct
Connection Screw terminals Screw terminals Screw terminals
Height 100 100 100
Width 113 113 113
Depth 40 40 60
Weight (kg) 0.5 0.5 0.54
Warranty 5 5 5
IP Rating IP43 (electronic components), IP22 (connection area) IP43 (electronic components), IP22 (connection area) IP43 (electronic components), IP22 (connection area)
On Grid / Off Grid Off Grid Off Grid Off Grid
Lithium Compatibility Yes* Yes* Yes*
Intrastat Commodity Code 85044055 85044055 85044055

Downloads / Documents

Related Products

1 3

*see manufacturer's documentation for further information
