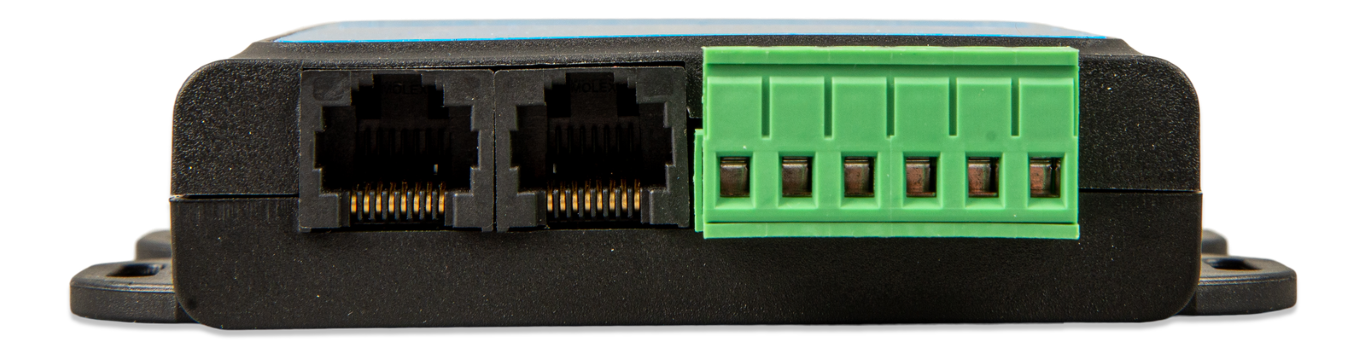

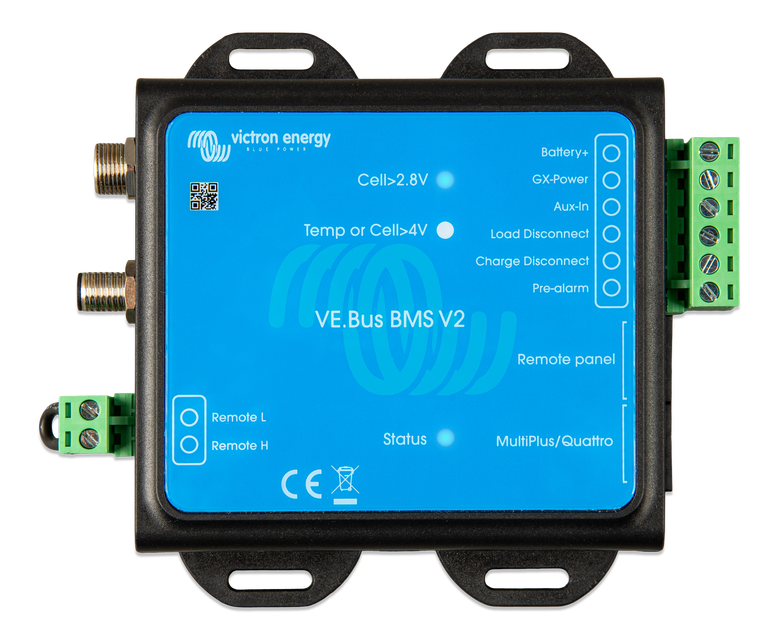

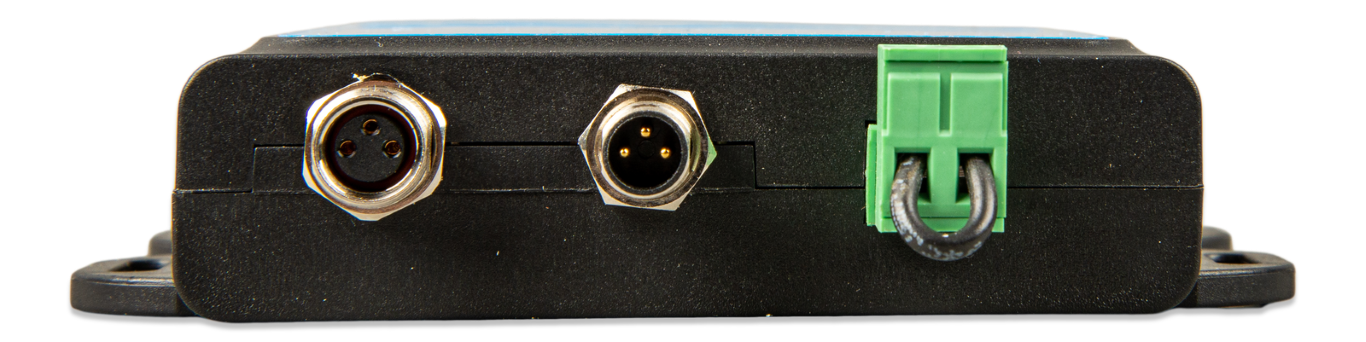

Victron VE.Bus BMS V2

Victron VE.Bus BMS V2

The VE.Bus BMS V2 is a Battery Management System (BMS) designed to interface with and protect a single, or multiple Victron Lithium Battery Smart 12,8V & 25,6V (LiFePO4 or LFP) in systems that have Victron inverters or inverter/chargers with VE.Bus communication. It monitors and protects the batteries against over voltage and under voltage of any individual cell, and also over temperature or under temperature conditions.

Based on the status of the battery or batteries, the BMS will:

• Generate a pre-alarm signal to alert of an imminent cell under voltage condition.
• Disable inverting in VE.Bus inverters or inverter/chargers via VE.Bus, and disable other loads via the 'Load Disconnect' terminal in the event of a cell under voltage condition.
• Disable charging in VE.Bus inverters or inverter/chargers via VE.Bus and disable other chargers via the 'Charge Disconnect' terminal in the event of a cell overvoltage, under temperature or over temperature condition.
• Remote on/off terminals.
• Ability to disable VE.Direct and VE.Can solar chargers via a GX device.
• Allowing control of the VE.Bus inverter/charger from multiple devices, like the Digital Multi Control, the VE.Bus Smart dongle and/or a GX device.
• Auxiliary power input and output terminals that allow a GX device to remain powered in the event of a system shutdown.
