Collection: Cables, Wiring and Connectors

• Locking fit

• IEC 62852 DC voltage rating - 1000V
• IEC 62852 DC Current rating - 39A (4-6sqmm cable), 45A (10sqmm cable)


For crimping or soldering onto cables.

• Rating 1000V, 40 A (with 4 mm² cable)
• Compatable with conductors from 2.5 to 6 mm²
• Temperature rating: up to 85 °C ambient temperature

Stäubli MC4 branch connectors for parallel connections.

The Staubli MC4-Evo2 is latest version of the MC4 connector.

Flexible multi-strand single core cable. Rubber double insulation, tinned copper conductors Price per metre.

The MC4 is now available in an easy-to-use snap-in PV connector. The MC4-Evo Ready is quick to install as it enables crimp-free assembly without the need for special tools allowing savings in time whilst still ensuring Stäubli quality.

RJ45 UTP (unshielded twisted pair) cables for network communications.

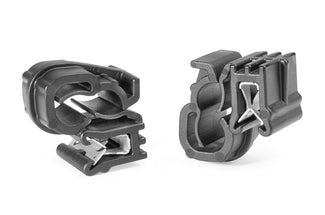

These Edge Fastening UV Resistant Cable Ties enable simple cable management on solar PV systems. The ties can be attached directly to the solar panel frame so are ideal for systems without rails. The cable tie head can be moved after bundling.

These cables have a male connector on one end and a female connector on the other. They can be used to extend PV module output cables or cut to provide a male & female cable from module to junction box.

Screened 3 twisted pair comms cable suitable for use with LGChem or BYD battery for communication with SMA Sunny Boy Storage and SolarEdge StorEdge Interface.

For use between battery and inverter as positive and negative leads. Flexible stranded, rubber double insulated, copper
wire with colour coded solid copper crimped terminal lugs. Terminals have 8 or 10 mm diameter stud mounting holes.
Price per cable.

MC4 sealing covers are used to protect the connectors from water and dust ingress. It is particularly important to use sealing covers during installation when the connectors are left disconnected and exposed to the elements. MC4 connectors that have been exposed to moisture may suffer internal corrosion which can cause increased resistance and earth leakage issues.
